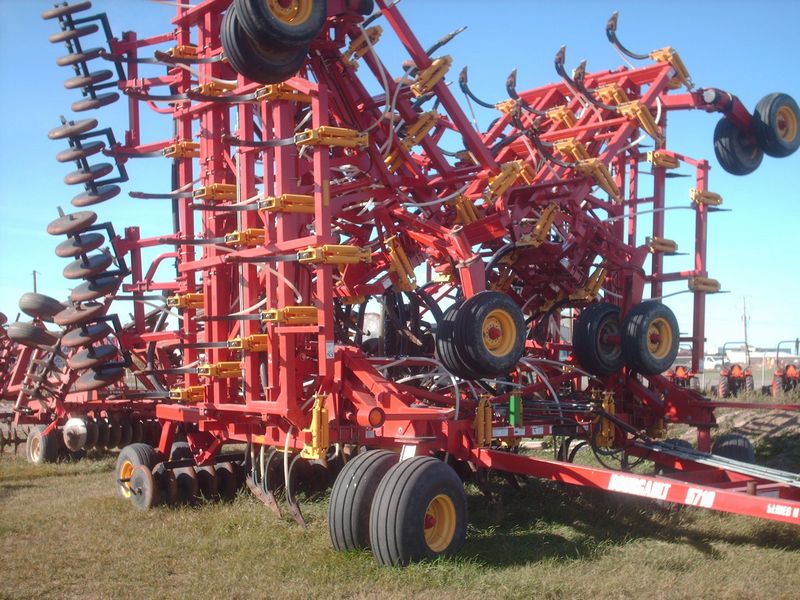

Bourgault 5710-24
Contents:
| Transport Width | 18.38 ft in (5.6 m) |
| Transport Height | 10.5 ft in (3.2 m) |
| Inner Wing | 6.24 ft in (1.9 m) |
| Main Frame | 12.8 ft in (3.9 m) |
| Number Of Sections | 3 |
| Rank To Rank Spacing | 24.5 in (62.3 cm) |
| Frame Depth | 102 in (259.1 cm) |
| Caster To Packer Depth | 1 in (2.6 cm) |
| 7.2 In Spacing | 24.7 ft in (7.5 m) |
| 10 In Spacing | 24.7 ft in (7.5 m) |
| 12 In Spacing | 25.3 ft in (7.7 m) |
| 7.2 In Spacing | 17220.4 lb (7811 kg) |
| 10 In Spacing | 16400.2 lb (7439 kg) |
| 12 In Spacing | 15741.1 lb (7140 kg) |
| Main Frame Casters | 9.5Lx15FI |
| Inner Wing Casters | 11Lx15FI |
| Outer Wing Casters | N/A |
| Rear Transport Wheels | 9.5Lx15FI |
