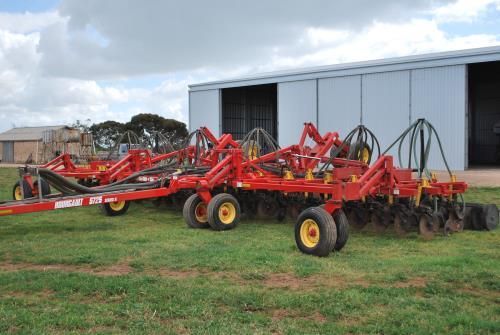

Bourgault 5725-50
Contents:
Frame Widths
| Transport Width | 21.99 ft in (6.7 m) |
| Transport Height | 15.75 ft in (4.8 m) |
| Inner Wing | 9.85 ft in (3 m) |
| Main Frame | 15.75 ft in (4.8 m) |
| Outer Wing | 8.54 ft in (2.6 m) |
Base Size
| Number Of Sections | 3 |
| Number Of Ranks | 2 |
| Rank To Rank Spacing | 59.1 in (150 cm) |
| Frame Depth | 102 in (259 cm) |
| Caster To Packer Depth | 1 in (2.5 cm) |
Working Width
| 10 In Spacing | 53.9 ft in (16.4 m) |
| 12 In Spacing | 52.5 ft in (16 m) |
Weights
| 10 In Spacing | 33400.1 lb (15150 kg) |
