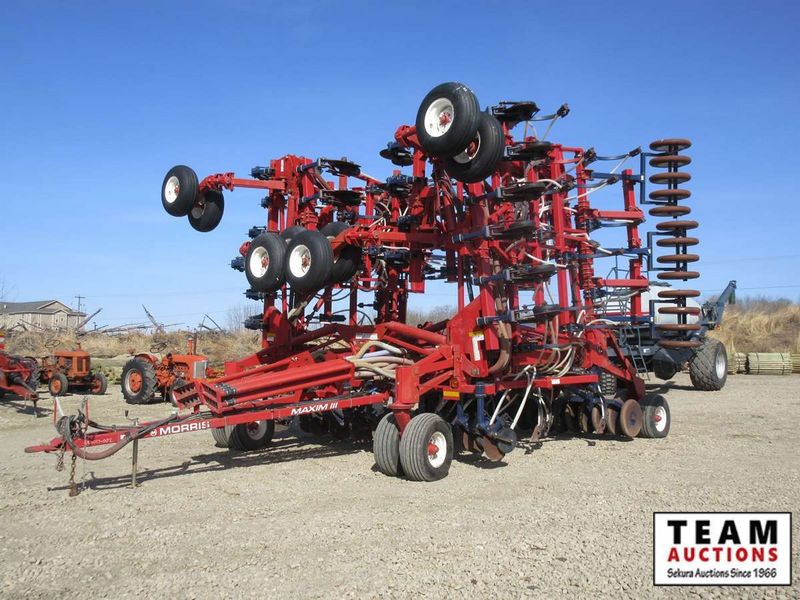

Morris Maxim III 50'
Contents:
Frame Widths
| Transport Length | 31.5 ft in (9.6 m) |
| Transport Width | 19.85 ft in (6.05 m) |
| Transport Height | 16.18 ft in (4.93 m) |
| Inner Wing | 9.52 ft in (2.9 m) |
| Main Frame | 15.49 ft in (4.72 m) |
| Outer Wing | 6.5 ft in (1.98 m) |
Base Size
| Base Width | 50 ft in (15.3 m) |
| Number Of Ranks | 4 |
| Rank To Rank Spacing | 23.5 in (59.7 cm) |
| Frame Depth | 78.4 in (199 cm) |
Working Width
| 7.5 In Spacing | 50 ft in (15.3 m) |
| 10 In Spacing | 50 ft in (15.3 m) |
| 12 In Spacing | 52.1 ft in (15.9 m) |
Number Of Shanks
| 7.5 In Spacing | 80 |
| 10 In Spacing | 60 |
| 12 In Spacing | 52 |
Weights
| 7.5 In Spacing | 32893 lb (14920 kg) |
| 10 In Spacing | 30589.2 lb (13875 kg) |
| 12 In Spacing | 29107.7 lb (13203 kg) |
Tires
| Main Frame Casters | (4) 12.5Lx15 FI load range f |
| Inner Wing Casters | (4) 12.5SLx15 |
| Outer Wing Casters | (4) 12.5SLx15 |
| Rear Transport Wheels | (4) 12.5Lx15 FI load range f 8 bolt hub |
