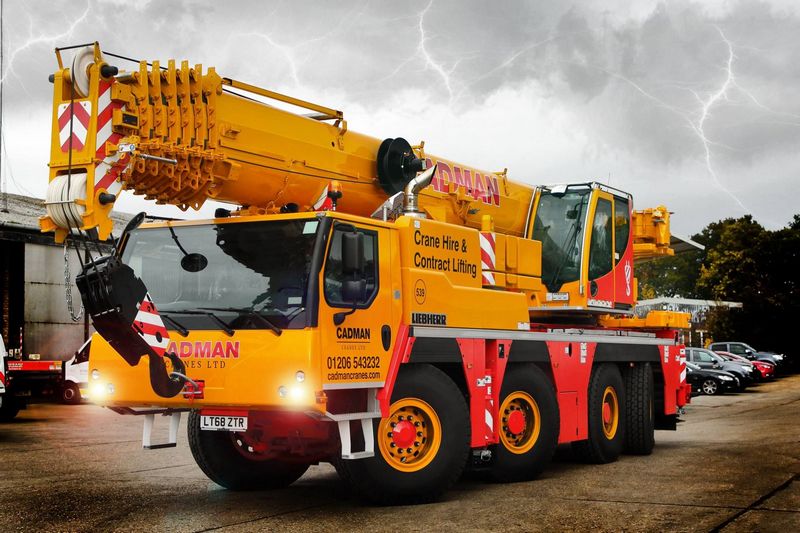

Liebherr LTM1090
Browse All Liebherr or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 39 ft in (11.89 m) |
| Max Height @ Max Raise Angle - No Jib | 148 ft in (45.12 m) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 44.9 ft in (13685.52 mm) |
| Transport Width | 9.6 ft in (2926.08 mm) |
| Transport Height | 12.4 ft in (3779.52 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Width W/ Outriggers Extended | 24.11 ft in (7348.73 mm) |
| Carrier Length | 38.11 ft in (11615.93 mm) |
| Upper Structure Tail Swing Radius | 15.4 ft in (4693.92 mm) |
Upper Structure Engine
| Number Of Cylinders | 6 |
| Make | Liebherr |
| Model | OM 366 A |
| Gross Power | 154.3 hp (115 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 413 lb ft (560 Nm) |
| Torque Measured @ | 1400 rpm |
Carrier Engine
| Make | Liebherr |
| Model | OM 442 LA |
| Gross Power | 429.2 hp (320 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1300 lb ft (1762.6 Nm) |
| Torque Measured @ | 1600 rpm |
| Number Of Cylinders | 8 |
Operational
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 74 gal (280.2 L) |
| Carrier Fuel Capacity | 132 gal (499.7 L) |
| Tires | 10 |
| Operating Voltage | 24 V |
| Tire Size | 16.00 R 25 |
Transmission
| Transmission Type | Allison CLBT 755 Automatic |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
