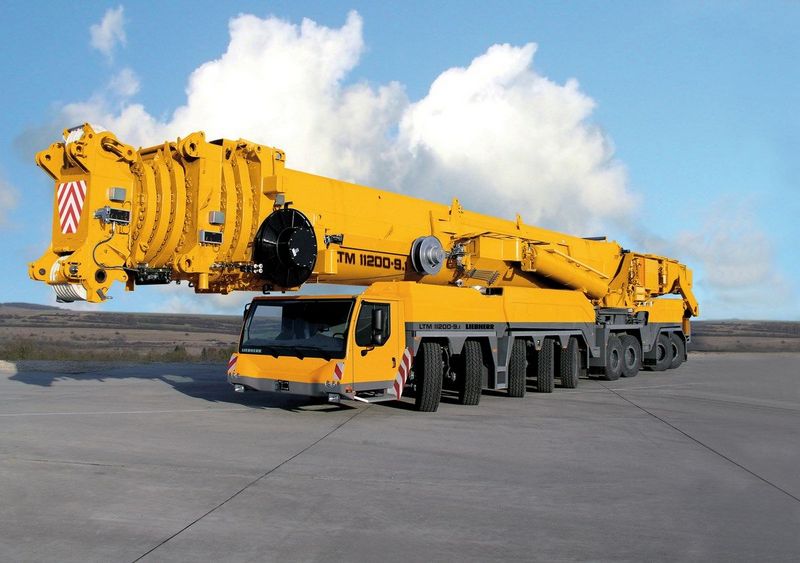

Liebherr LTM11200-9.1
Browse All Liebherr or All Terrain Crane Models
Contents:
Dimensions
| Transport Length | 92.52 ft in (28200 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Carrier Length | 65.42 ft in (19939 mm) |
| Upper Structure Tail Swing Radius | 38.05 ft in (11595 mm) |
Upper Structure Engine
| Make | Liebherr |
| Model | D936 A6 |
| Net Power | 367 hp (273.7 kw) |
| Max Torque | 1720 lb ft (2332.1 Nm) |
Carrier Engine
| Make | Liebherr |
| Model | D9508 A7 |
| Net Power | 680 hp (507.1 kw) |
| Max Torque | 3000 lb ft (4067.5 Nm) |
Operational
| Number Of Axels | 9 |
| Upper Structure Fuel Capacity | 79.3 gal (300 L) |
| Carrier Fuel Capacity | 158.6 gal (600 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14R25 |
Transmission
| Transmission Type | automatic with torque converter, ZF TC-TRONIC |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
