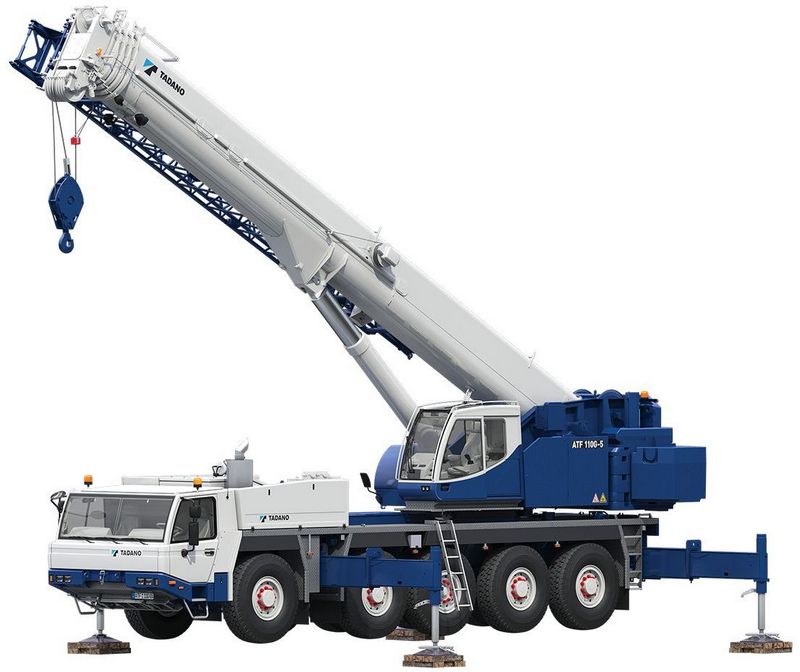

Tadano ATF110G-5
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 42.7 ft in (13.02 m) |
| Max Height @ Max Raise Angle - No Jib | 86.6 ft in (26.4 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 150 ft in (45.72 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 260000 lb (117934.03 kg) |
| Swing Speed | 1.7 rpm |
Dimensions
| Transport Length | 48.91 ft in (14907.5 mm) |
| Transport Width | 10.26 ft in (3125 mm) |
| Transport Height | 13.11 ft in (3995 mm) |
| Width W/ Outriggers Extended | 24.61 ft in (7500 mm) |
| Carrier Length | 39.54 ft in (12049 mm) |
| Upper Structure Tail Swing Radius | 15.76 ft in (4803 mm) |
Upper Structure Engine
| Make | Tadano |
| Model | OM 904 LA |
| Gross Power | 177 hp (132 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 486.8 lb ft (660.1 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Tadano |
| Model | OM 502 LA |
| Gross Power | 517 hp (385.6 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1770 lb ft (2399.8 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 972 cu in (16 L) |
Operational
| Operating Weight | 132275 lb (59999 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 84.6 gal (320 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic 16AS2602 fully automatic |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.8 mph (85 km/h) |
| Max Speed - Reverse | 4.3 mph (7 km/h) |
