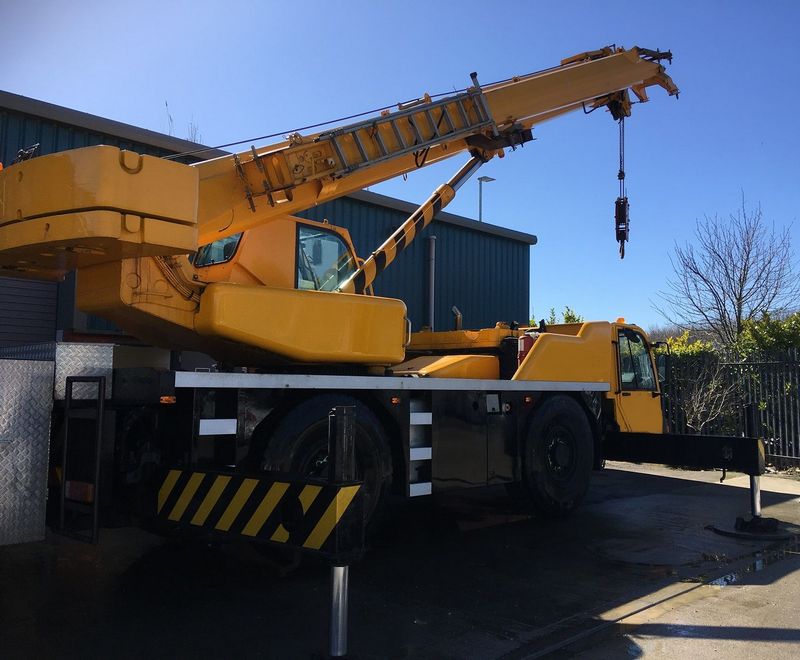

Terex AC35
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 30.84 ft in (9.4 m) |
| Max Height @ Max Raise Angle - No Jib | 99.74 ft in (30.4 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 91.87 ft in (28 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 6 |
| Max Lift Capacity | 77161.79 lb (35000 kg) |
| Swing Speed | 2.21 rpm |
Dimensions
| Transport Length | 35.07 ft in (10689 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 11.09 ft in (3380 mm) |
| Width W/ Outriggers Extended | 19.53 ft in (5950 mm) |
| Carrier Length | 29.27 ft in (8920 mm) |
| Upper Structure Tail Swing Radius | 19.2 ft in (5850 mm) |
Carrier Engine
| Make | Terex |
| Model | OM 906 LA |
| Gross Power | 279 hp (208.1 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 66.1 gal (250 L) |
| Upper Structure Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 16.00 R 25 |
Transmission
| Transmission Type | Automated Powershift Transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
