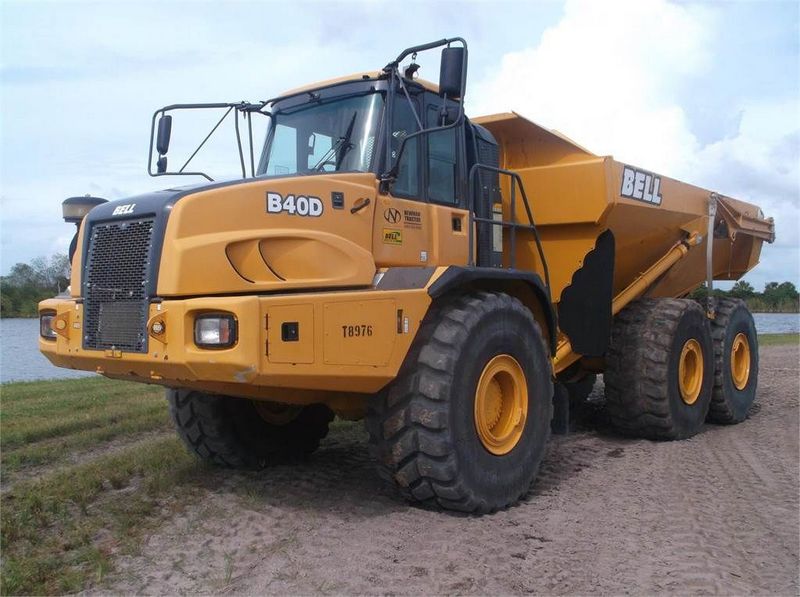

Bell B40D 6x6
Contents:
| Overall Length | 34.55 ft in (10530 mm) |
| Overall Width | 11.03 ft in (3360 mm) |
| Overall Height | 12.54 ft in (3820 mm) |
| Dump Angle | 70 degrees |
| Raise Time | 13 sec |
| Capacity - Struck | 22.11 yd3 (16.9 m3) |
| Lower Time | 7.6 sec |
| Capacity - Heaped | 29.43 yd3 (22.5 m3) |
| Engine Make | 2345 |
| Engine Model | OM501LA |
| Gross Power | 315 hp (234.9 kw) |
| Max Torque | 1475.2 lb ft (2000 Nm) |
| Fuel Capacity | 127.9 gal (484 L) |
| Tire Size | 29.5R25 |
| Transmission Type | Allison HD4560 |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 32.4 mph (52 km/h) |
| Total Empty | 63603.4 lb (28850 kg) |
| Total Loaded | 81571.1 lb (37000 kg) |
