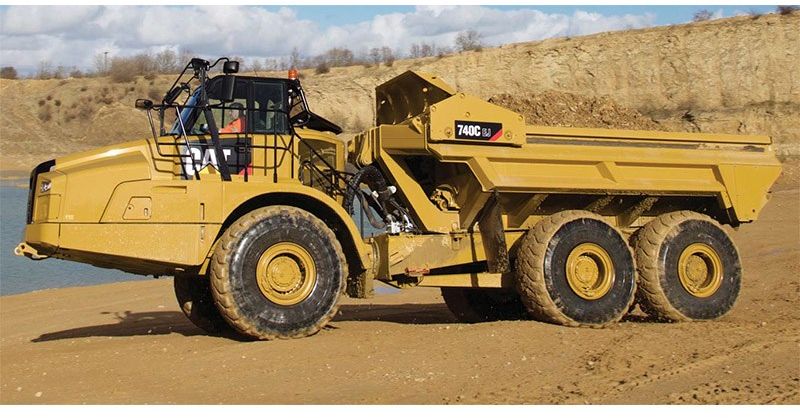

Caterpillar 740C EJ
Browse All Caterpillar or Articulated Dump Truck Models
Contents:
Dump
| Rated Payload | 84000 lb (38101.77 kg) |
| Capacity - Heaped | 30.1 yd3 (23.02 m3) |
| Capacity - Struck | 23.5 yd3 (17.97 m3) |
Engine
| Engine Make | 2236 |
| Engine Model | C18 Acert |
| Gross Power | 511 hp (381.1 kw) |
| Net Power | 496 hp (369.9 kw) |
| Torque Measured @ | 1200 rpm |
| Displacement | 1106 cu in (18.2 L) |
| Bore | 5.7 in (144.8 mm) |
| Stroke | 7.2 in (182.9 mm) |
| Net Power - Sae J1349 | 496 hp (369.9 kw) |
| Gross Power - Sae J1995 | 511 hp (381.1 kw) |
| Engine Model | Cat C18 ACERT |
| Net Power - Iso 14396 | 504 hp (375.9 kw) |
| No Engine De-Rating Required Below | 10000 ft in (3048 m) |
| Peak Engine Torque Gross (Sae J1995) | 1931 lb ft (2618.1 Nm) |
| Peak Engine Torque Speed | 1200 rpm |
| Peak Engine Torque Net (Sae J1349) | 1887 lb ft (2558.5 Nm) |
| Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final | Cat C18 ACERT |
Operational
| Cooling System Fluid Capacity | 23.7 gal (89.8 L) |
| Transmission Fluid Capacity | 19.8 gal (75 L) |
Transmission
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 2 |
| Forward - 1 | 3.8 mph (6.2 km/h) |
| Forward - 2 | 5 mph (8.1 km/h) |
| Forward - 3 | 7 mph (11.3 km/h) |
| Forward - 4 | 8.8 mph (14.2 km/h) |
| Forward - 5 | 11.6 mph (18.7 km/h) |
| Forward - 6 | 14.2 mph (22.9 km/h) |
| Forward - 7 | 19.6 mph (31.6 km/h) |
| Reverse - 1 | 4 mph (6.5 km/h) |
| Reverse - 2 | 9.1 mph (14.7 km/h) |
Steering
| Lock To Lock | 4.6 seconds @ 60 rpm |
Transmission
| Forward - 8 | 23.5 mph (37.9 km/h) |
| Forward - 9 | 34 mph (54.8 km/h) |
Weights
| Front Axle - Empty | 45239 lb (20520.1 kg) |
| Center Axle - Empty | 17416 % |
| Rear Axle - Empty | 16865 lb (7649.9 kg) |
| Front Axle - Loaded | 3527 % |
| Center Axle - Loaded | 40124 % |
| Rear Axle - Loaded | 40124 lb (18200 kg) |
| Total Empty | 79521 lb (36070.2 kg) |
| Total Loaded | 163296 lb (74069.9 kg) |
Service Refill Capacities
| Cooling System | 23.7 gal (89.8 L) |
| Fuel Tank | 145.3 gal (550.1 L) |
| Def Tank | 6.6 gal (25 L) |
| Final Drive - Each | 1.3 gal (5 L) |
| Engine Crankcase | 13.7 gal (51.9 L) |
| Brake Cooling Tank | 17.7 gal (67 L) |
| Steering/Hoist Hydraulic System | 36.9 gal (139.7 L) |
| Transmission - Otg | 19.8 gal (75 L) |
| Axles - Each | 15.8 gal (59.9 L) |
Standards
| Cab - Fops | ISO 3449 Level II-2005 |
| Cab - Rops | ISO 3471-2008 |
| Brakes | ISO 3450-2011 |
| Steering | ISO 5010-2007 |
Operating Weights
| Front Axle - Empty | 45239 lb (20520.1 kg) |
| Center Axle - Empty | 17416 lb (7899.8 kg) |
| Rear Axle - Empty | 16865 lb (7649.9 kg) |
| Total - Empty | 79521 lb (36070.2 kg) |
| Front Axle - Rated Load | 3527 lb (1599.9 kg) |
| Center Axle - Rated Load | 40124 lb (18200 kg) |
| Rear Axle - Rated Load | 40124 lb (18200 kg) |
| Total - Rated Load | 83776 lb (38000.2 kg) |
| Front Axle - Loaded | 48766 lb (22119.9 kg) |
| Center Axle - Loaded | 57541 lb (26100.2 kg) |
| Rear Axle - Loaded | 56989 lb (25849.8 kg) |
| Total - Loaded | 163296 lb (74069.9 kg) |
Sound Levels
| Interior Cab | 79 dB(A) |
Turning Circle
| Note | Dimensions are for machines equipped with 29.5R25 tires. |
| Turning Dimensions - Sae Turning Radius | 340 in (8636 mm) |
| Turning Dimensions - Clearance Radius | 358 in (9093.2 mm) |
| Turning Dimensions - Inside Radius | 174 in (4419.6 mm) |
| Turning Dimensions - Aisle Width | 235 in (5969 mm) |
Body Capacities
| Heaped (Sae 2:1) | 30.1 yd3 (23.1 m3) |
| Struck | 23.5 yd3 (18 m3) |
Body Hoist
| Eject Time | 17 s |
| Retract Time | 20 s |
Body Plate
| Body Plate Type | High strength Brinell HB450 wear resistant steel |
