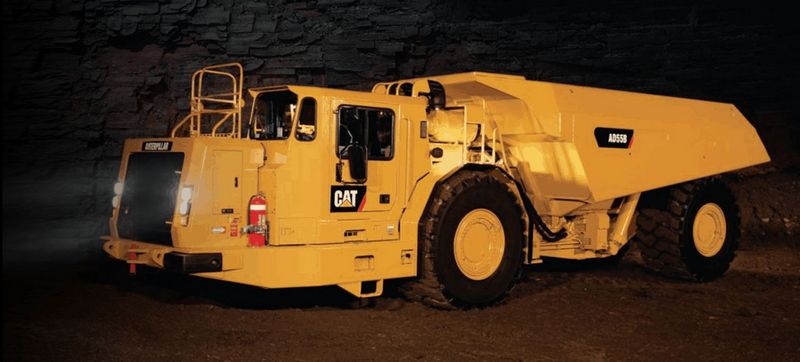

Caterpillar AD55
Browse All Caterpillar or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 37.89 ft in (11546.84 mm) |
| Overall Width | 10.98 ft in (3345.18 mm) |
| Overall Height | 16.41 ft in (5001.26 mm) |
| Wheelbase | 19.36 ft in (5897.88 mm) |
| Ground Clearance | 1.29 ft in (391.16 mm) |
Dump
| Lower Time | 4 sec |
| Raise Time | 11 sec |
| Capacity - Struck | 35.19 yd3 (26.9 m3) |
Engine
| Engine Make | 2236 |
| Engine Model | C18 ATTAAC |
| Gross Power | 650 hp (484.8 kw) |
| Net Power | 617 hp (460.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1106.5 cu in (18.2 L) |
Operational
| Fuel Capacity | 201.9 gal (764 L) |
| Hydraulic System Fluid Capacity | 70.3 gal (266 L) |
| Cooling System Fluid Capacity | 22.5 gal (85 L) |
| Engine Oil Capacity | 17 gal (64 L) |
| Transmission Fluid Capacity | 15.9 gal (60 L) |
| Tire Size | 25x65 R33 |
Transmission
| Number Of Forward Gears | 7 |
| Number Of Reverse Gears | 2 |
| Max Speed | 26.9 mph (43.3 km/h) |
Weights
| Front Axle - Empty | 69004 lb (31299.7 kg) |
| Rear Axle - Empty | 34612 lb (15699.8 kg) |
| Total Empty | 103617 lb (46999.9 kg) |
