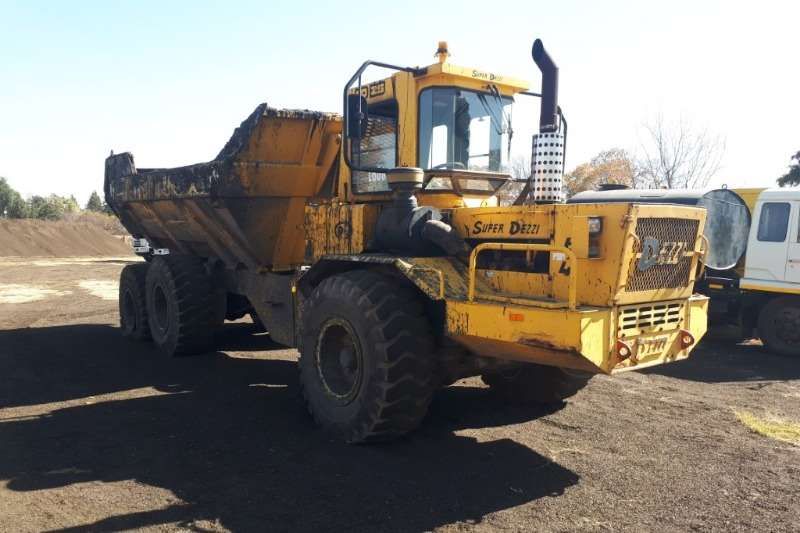

Dezzi AD25B 6X4 & 6X6
Browse All Dezzi or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 30.48 ft in (9289 mm) |
| Overall Width | 8.54 ft in (2600 mm) |
| Overall Height | 8.74 ft in (2662 mm) |
Dump
| Dump Angle | 66 degrees |
| Raise Time | 16 sec |
| Capacity - Heaped | 18.32 yd3 (14 m3) |
| Capacity - Struck | 14.39 yd3 (11 m3) |
| Rated Payload | 55115.57 lb (25000 kg) |
Engine
| Engine Make | 2301 |
| Engine Model | Cummins 6 |
| Gross Power | 168 hp (125.3 kw) |
| Max Torque | 520 lb ft (705 Nm) |
Operational
| Fuel Capacity | 52.9 gal (200 L) |
| Tire Size | 20.5x25 Radial |
Transmission
| Transmission Type | ZF6WG210 powershift/automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 37.3 mph (60 km/h) |
Weights
| Total Empty | 36596.8 lb (16600 kg) |
