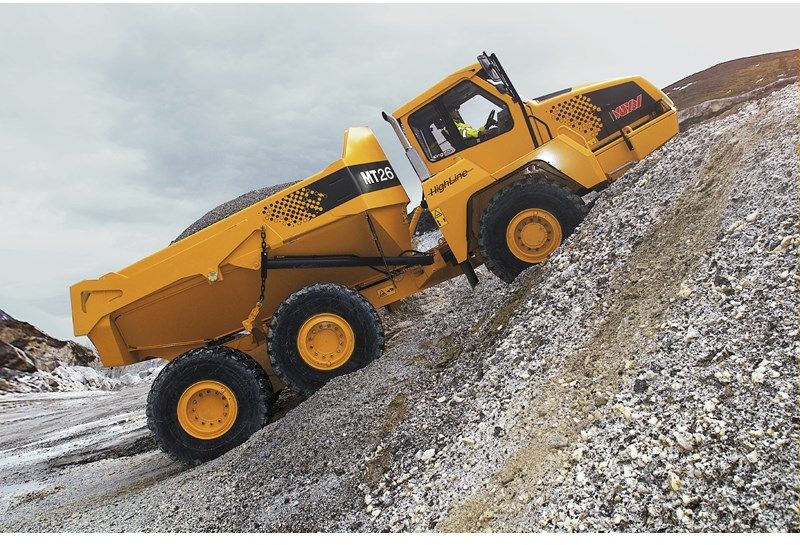

Moxy MT26
Browse All Moxy or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 30.84 ft in (9400 mm) |
| Overall Width | 9.03 ft in (2750 mm) |
| Overall Height | 11.65 ft in (3550 mm) |
| Ground Clearance | 1.89 ft in (576 mm) |
| Dump Height | 17.57 ft in (5355 mm) |
| Dump Ground Clearance | 2.01 ft in (610 mm) |
Dump
| Raise Time | 11 sec |
| Capacity - Heaped | 18.45 yd3 (14.1 m3) |
| Capacity - Struck | 14.92 yd3 (11.4 m3) |
| Lower Time | 10 sec |
| Rated Payload | 51808.64 lb (23500 kg) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2369 |
| Engine Model | DC 9 |
| Gross Power | 313.8 hp (234 kw) |
| Max Torque | 1069.5 lb ft (1450 Nm) |
| Aspiration | turbocharged |
| Displacement | 549.3 cu in (9 L) |
Operational
| Fuel Capacity | 84.6 gal (320 L) |
| Hydraulic System Fluid Capacity | 36.5 gal (138 L) |
| Cooling System Fluid Capacity | 9.6 gal (36 L) |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 15.1 gal (57 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | ZF 6 WG 260 Dash 4 electronically-controlled automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 31.7 mph (51 km/h) |
Weights
| Front Axle - Empty | 24140.7 lb (10950 kg) |
| Rear Axle - Empty | 24361.1 lb (11050 kg) |
| Front Axle - Loaded | 33510.3 % |
| Rear Axle - Loaded | 66800.1 lb (30300 kg) |
| Total Empty | 48501.8 lb (22000 kg) |
| Total Loaded | 100310.4 lb (45500 kg) |
