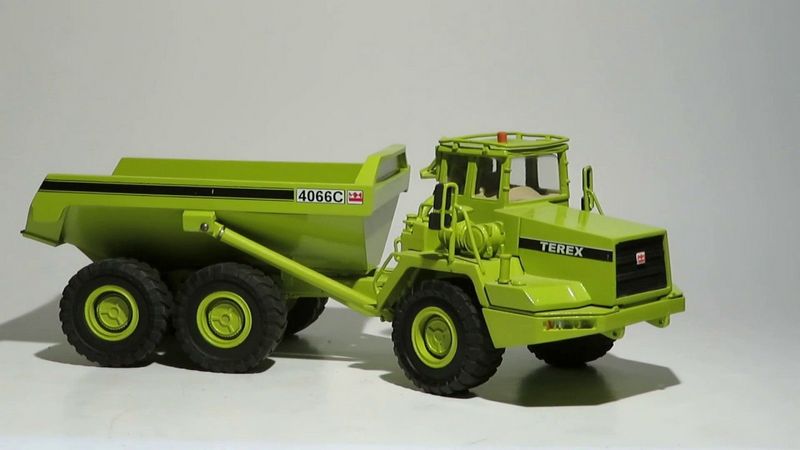

Terex 4066C
Browse All Terex or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 34.95 ft in (10650 mm) |
| Overall Width | 11.26 ft in (3430 mm) |
| Overall Height | 12.01 ft in (3660 mm) |
| Wheelbase | 18.33 ft in (5585 mm) |
| Ground Clearance | 1.91 ft in (580 mm) |
| Dump Height | 21.46 ft in (6540 mm) |
| Dump Ground Clearance | 2.4 ft in (730 mm) |
Dump
| Dump Angle | 65 degrees |
| Lower Time | 12 sec |
| Rated Payload | 80470 lb (36500.59 kg) |
| Capacity - Struck | 22.2 yd3 (16.98 m3) |
| Raise Time | 16 sec |
| Capacity - Heaped | 28.8 yd3 (22.02 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2350 |
| Engine Model | Series 60 |
| Gross Power | 400 hp (298.3 kw) |
| Net Power | 375 hp (279.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1450 lb ft (1966 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | turbocharged with air-to-air charge cooling, water-cooled |
| Displacement | 775.1 cu in (12.7 L) |
Operational
| Fuel Capacity | 112 gal (424 L) |
| Hydraulic System Fluid Capacity | 45 gal (170.4 L) |
| Cooling System Fluid Capacity | 23 gal (87.1 L) |
| Engine Oil Capacity | 9.5 gal (36 L) |
| Transmission Fluid Capacity | 11 gal (41.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 26.5 R 25 |
Transmission
| Transmission Type | ZF 6WG 65 Automatic with manual override |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 28 mph (45.1 km/h) |
Weights
| Center Axle - Empty | 16800 % |
| Front Axle - Empty | 31345 lb (14217.9 kg) |
| Rear Axle - Empty | 16870 lb (7652.2 kg) |
| Front Axle - Loaded | 41315 % |
| Center Axle - Loaded | 52085 % |
| Rear Axle - Loaded | 52085 lb (23625.4 kg) |
| Total Empty | 65015 lb (29490.4 kg) |
| Total Loaded | 145485 lb (65990.9 kg) |
