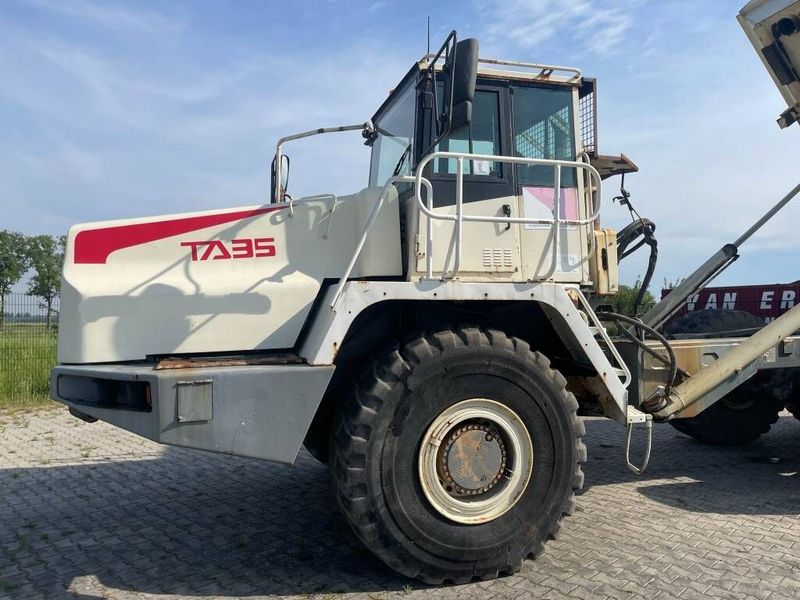

Terex TA35
Browse All Terex or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 35.77 ft in (10900 mm) |
| Overall Width | 10.5 ft in (3200 mm) |
| Overall Height | 12.8 ft in (3900 mm) |
| Wheelbase | 17.39 ft in (5300 mm) |
| Ground Clearance | 1.74 ft in (530 mm) |
| Dump Height | 22.64 ft in (6900 mm) |
| Dump Ground Clearance | 2.79 ft in (850 mm) |
Dump
| Dump Angle | 66 degrees |
| Lower Time | 8 sec |
| Rated Payload | 74956 lb (33999.47 kg) |
| Capacity - Struck | 20.28 yd3 (15.5 m3) |
| Raise Time | 12.5 sec |
| Capacity - Heaped | 27.47 yd3 (21 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2350 |
| Engine Model | Series 60 |
| Gross Power | 400 hp (298.3 kw) |
| Net Power | 388 hp (289.4 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1445 lb ft (1959.2 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | turbocharged |
| Displacement | 855 cu in (14.1 L) |
Operational
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Cooling System Fluid Capacity | 17.7 gal (67 L) |
| Engine Oil Capacity | 8.5 gal (32 L) |
| Transmission Fluid Capacity | 16.2 gal (61 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 26.5R25 |
Transmission
| Transmission Type | Allison HD4560 fully automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 33.5 mph (53.9 km/h) |
Weights
| Center Axle - Empty | 15707 % |
| Front Axle - Empty | 33258 lb (15085.6 kg) |
| Rear Axle - Empty | 15582 lb (7067.9 kg) |
| Front Axle - Loaded | 38094 % |
| Center Axle - Loaded | 50705 % |
| Rear Axle - Loaded | 50705 lb (22999.5 kg) |
| Total Empty | 64547 lb (29278.1 kg) |
| Total Loaded | 139506 lb (63278.9 kg) |
