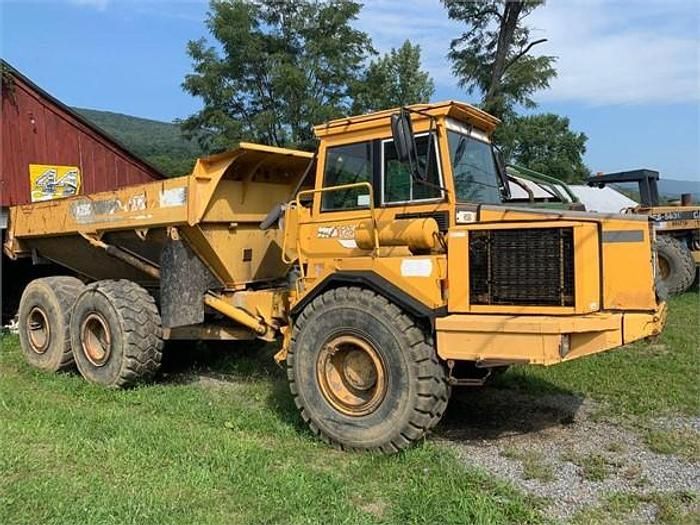

Volvo A25C 4X4
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.75 ft in (9675 mm) |
| Overall Width | 8.21 ft in (2500 mm) |
| Overall Height | 10.78 ft in (3285 mm) |
| Wheelbase | 13.67 ft in (4165 mm) |
| Ground Clearance | 1.71 ft in (520 mm) |
| Dump Height | 21 ft in (6400 mm) |
| Dump Ground Clearance | 2.1 ft in (640 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 49604.01 lb (22500 kg) |
| Capacity - Struck | 14.39 yd3 (11 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 18.05 yd3 (13.8 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 73 KCE |
| Gross Power | 255 hp (190.2 kw) |
| Net Power | 251 hp (187.2 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 796.6 lb ft (1080 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged |
| Displacement | 410.7 cu in (6.8 L) |
Operational
| Fuel Capacity | 74 gal (280 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Cooling System Fluid Capacity | 9.8 gal (37 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 4.3 gal (16 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Tire Size | front 23.5R25 / rear 29.5R25 |
Transmission
| Transmission Type | Fully automatic planetary transmission |
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 2 |
| Max Speed | 32.4 mph (52 km/h) |
Weights
| Front Axle - Empty | 19929.8 lb (9040 kg) |
| Rear Axle - Empty | 19246.4 lb (8730 kg) |
| Front Axle - Loaded | 25353.2 % |
| Rear Axle - Loaded | 63427 lb (28770 kg) |
| Total Empty | 39176.2 lb (17770 kg) |
| Total Loaded | 88780.2 lb (40270 kg) |
