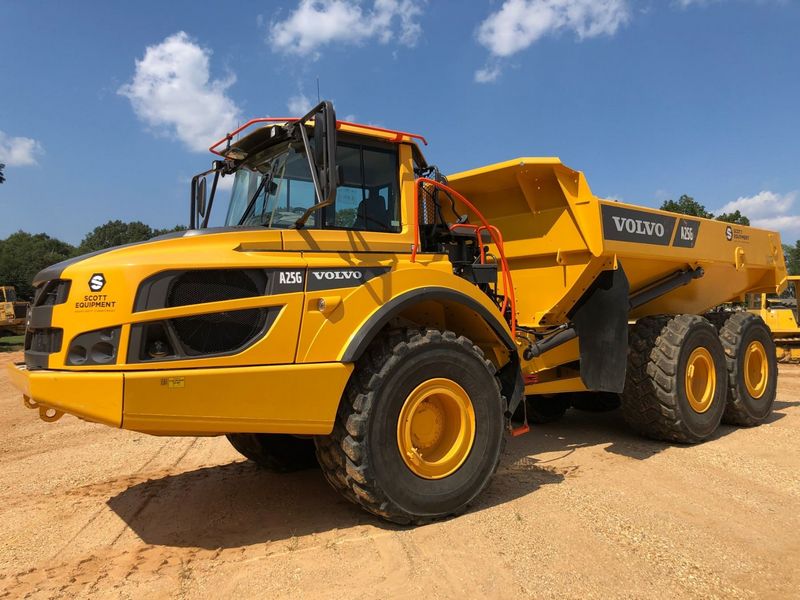

Volvo A25G
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 33.53 ft in (10218 mm) |
| Overall Width | 16.94 ft in (5162 mm) |
| Overall Height | 11.02 ft in (3356 mm) |
| Wheelbase | 9.07 ft in (2762 mm) |
| Ground Clearance | 1.71 ft in (519 mm) |
| Dump Height | 21.43 ft in (6529 mm) |
| Dump Ground Clearance | 2.23 ft in (678 mm) |
Dump
| Dump Angle | 74 degrees |
| Capacity - Heaped | 20.02 yd3 (15.3 m3) |
| Lower Time | 10 sec |
| Capacity - Struck | 15.83 yd3 (12.1 m3) |
Electrical System
| Battery Capacity | 2x170 |
| Alternator | 3.396/120 |
| Voltage | 24 V |
| Starter Motor | 9 |
| Battery | 2x12 |
Body
| Plate Thickness-Front | 0.3 in (6 mm) |
| Plate Thickness-Sides | 0.4 in (10 mm) |
| Plate Thickness-Bottom | 0.6 in (14 mm) |
| Plate Thickness-Chute | 0.6 in (14 mm) |
Engine
| Horsepower, Gross-Sae J1995 | 315 hp (234.9 kw) |
| Horsepower Per Sae J1349 Net | 314 hp (234.2 kw) |
| Max Engine Speed | 2100 |
| Engine Make | Volvo |
| Engine Model | D11L |
| Gross Torque | 1438.3 lb ft (1950 Nm) |
| Net Torque | 1432.4 lb ft (1942 Nm) |
| Displacement | 659 cu in (10.8 L) |
Drive Train
| Torque Converter | 2.37:1 |
| Dropbox | IL1 ATC |
| Axles | AHW56 |
| Transmission | PT 2116 |
Capacities
| Fuel Tank | 100.4 gal (380 L) |
| Hydraulic Tank | 36.2 gal (137 L) |
| Cooling System | 12.7 gal (48 L) |
| Def Tank | 10.4 gal (39 L) |
| Transmission | 10.9 gal (41 L) |
| Crankcase | 9.3 gal (35 L) |
| Brake Cooling System | 9.3 gal (35 L) |
| Dropbox | 2.4 gal (9 L) |
Transmission
| Transmission Type | Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 32.8 mph (52.7 km/h) |
Weights
| Total Empty | 49493.8 lb (22450 kg) |
| Total Loaded | 104609.4 lb (47450 kg) |
Hydraulic System
| Maximum System Pressure | 3626 psi (25000.4 kPa) |
