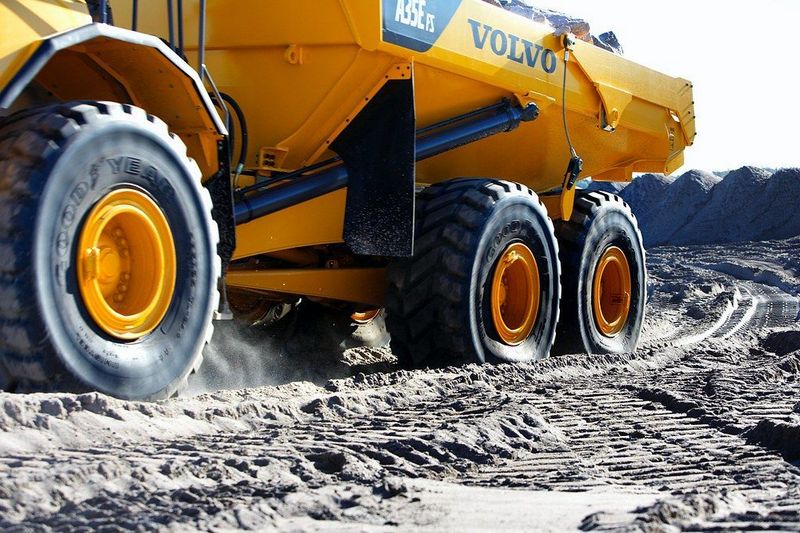

Volvo A35E
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.68 ft in (11182 mm) |
| Overall Width | 10.68 ft in (3258 mm) |
| Overall Height | 12.19 ft in (3716 mm) |
| Wheelbase | 15.01 ft in (4578 mm) |
| Ground Clearance | 2.48 ft in (754 mm) |
| Dump Height | 23.7 ft in (7246 mm) |
| Dump Ground Clearance | 2.94 ft in (899 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 73855 lb (33500 kg) |
| Capacity - Struck | 20.9 yd3 (16 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 26.8 yd3 (20.5 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D12D AEE3 |
| Gross Power | 419 hp (313 kw) |
| Net Power | 414 hp (309 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1549 lb ft (- Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and Intercooled |
| Displacement | 732 cu in (12 L) |
Operational
| Fuel Capacity | 126.8 gal (480 L) |
| Hydraulic System Fluid Capacity | 69.2 gal (262 L) |
| Cooling System Fluid Capacity | 26.4 gal (100 L) |
| Engine Oil Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 10 gal (38 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 26,5R25 |
Transmission
| Transmission Type | PT 2509 |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 3 |
| Max Speed | 35.4 mph (57 km/h) |
Weights
| Front Axle - Empty | 32408 lb (14700 kg) |
| Rear Axle - Empty | 29542 lb (13400 kg) |
| Front Axle - Loaded | 39022 % |
| Rear Axle - Loaded | 96783 lb (43900 kg) |
| Total Empty | 61950 lb (28100 kg) |
| Total Loaded | 135805 lb (61600 kg) |
