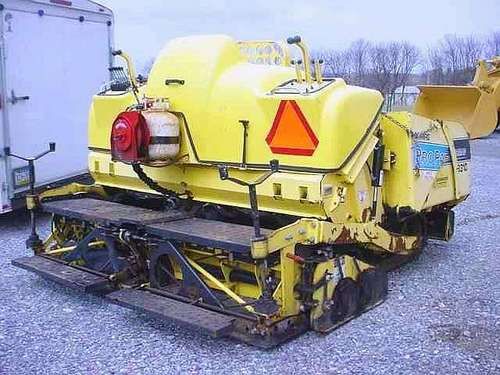

Bomag 3310
Browse All Bomag or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 12.45 ft in (3794 mm) |
| Transport Width | 8.51 ft in (2591 mm) |
| Transport Height | 6.5 ft in (1981 mm) |
| Track Width | 13 in (330 mm) |
Engine
| Engine Make | 2353 |
| Gross Power | 47 hp (35 kw) |
Operational
| Operating Weight W/ Screed | 10000 lb (4536 kg) |
| Fuel Capacity | 13 gal (49 L) |
| Hydraulic System Fluid Capacity | 18 gal (68 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
Hopper/Paver
| Paving Width - Std | 7.9 ft in (2400 mm) |
| Paving Width - Max | 13.2 ft in (4000 mm) |
| Paving Thickness - Max | 6 in (152 mm) |
| Paving Speed - Max | 150 ft/min (45.7 m/min) |
| Travel Speed - Max | 3.5 mph (5.5 km/h) |
