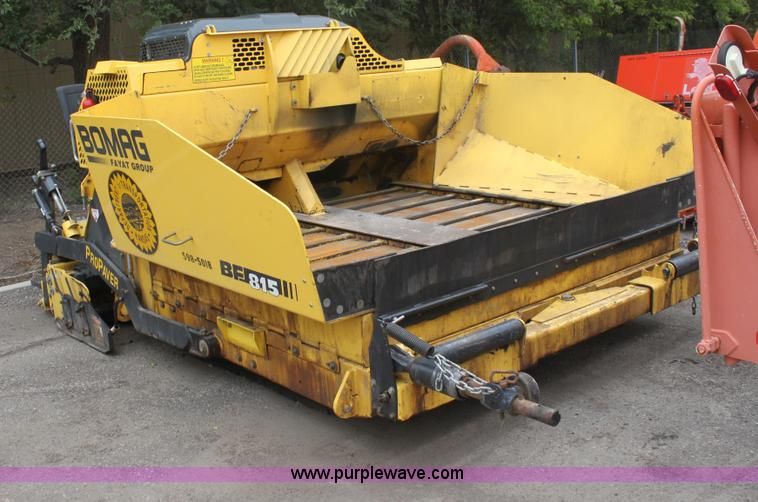

Bomag BF815
Browse All Bomag or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 12.01 ft in (3658 mm) |
| Transport Width | 8.51 ft in (2591 mm) |
| Transport Height | 6.17 ft in (1880 mm) |
| Track Width | 12.01 in (305 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 4B 3.3 T |
| Gross Power | 85 hp (63.4 kw) |
Operational
| Operating Weight W/ Screed | 15950 lb (7234.8 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Hydraulic System Fluid Capacity | 34.9 gal (132 L) |
| Cooling System Fluid Capacity | 3.5 gal (13 L) |
Hopper/Paver
| Paving Width - Std | 7.9 ft in (2400 mm) |
| Paving Width - Max | 15.1 ft in (4600 mm) |
| Paving Thickness - Max | 6 in (152 mm) |
| Paving Speed - Max | 180.5 ft/min (55 m/min) |
| Travel Speed - Max | 4.2 mph (6.6 km/h) |
