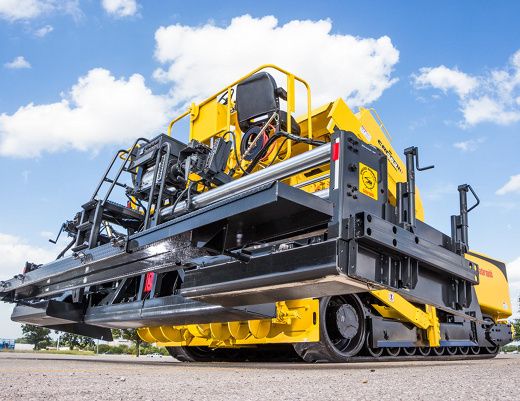

Bomag CR562
Browse All Bomag or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 7.5 ft in (2286 mm) |
| Transport Height | 9.17 ft in (2794 mm) |
| Wheelbase | 10.67 ft in (3251 mm) |
| Overall Length | 489 in (12420.6 mm) |
| Track Width | 18 in (457.2 mm) |
Screed
| Screed Plate Thickness | 0.5 in (12.7 mm) |
| Positive Crown | 3 in (76.2 mm) |
| Negative Crown | 1 in (25.4 mm) |
| Vibrations Per Minute (Max) | 3000 |
| Stretch® 16 (Electric Heat) Generator | 45.6 hp (34 kw) |
| Stretch® 16 (Four Oil Heaters) 274,000 Btu (Total) | 2.0 gph |
| Fastach® 8 (Electric Heat) Generator | 45.6 hp (34 kw) |
| Fastach® 8 (Two Oil Heaters) 178,000 Btu | 1.3 gph |
Engine
| Emission Tier Level | Tier 4F |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 260 hp (193.9 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 82 gal (310.5 L) |
| Hydraulic System Fluid Capacity | 75 gal (284 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.7 L) |
| Operating Voltage | 12 V |
Hopper/Paver
| Hopper Capacity | 30000.1 lb (13607.8 kg) |
| Hopper Volume | 9.9 yd3 (7.6 m3) |
| Hopper Width | 118.7 in (3013 mm) |
| Slat Conveyor Liner Thickness | 0.4 in (9.5 mm) |
| Auger Construction | Cast , High alloy |
| Paving Width - Std | 10.4 ft in (3150 mm) |
| Paving Depth - Max | 12.1 in (305 mm) |
| Feed Tunnel Width | 30 in (762 mm) |
| Hopper Length | 90 in (2286 mm) |
| Auger Thickness | 0.7 in (16 mm) |
| Paving Width - Max | 30 ft in (9144 mm) |
| Paving Speed - Max | 242 ft/min (73.8 m/min) |
| Travel Speed - Max | 9.6 mph (15.5 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
Weights
| Tractor Weight - With Fastach® 8 And Hydroflated Tires | 40415 lb (18332 kg) |
| Tractor Weight - With Stretch 16 And Hydroflated Tires | 44315 lb (20101 kg) |
| Tractor Weight | 36415 lb (16517.6 kg) |
Brakes
| Parking Brake | Multiple disc |
