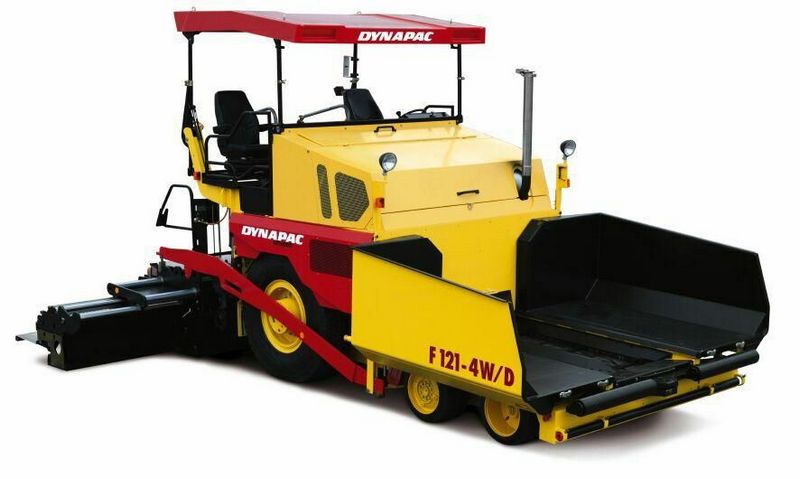

Dynapac F121W/D
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 10.18 ft in (3100 mm) |
| Wheelbase | 8.15 ft in (2482.5 mm) |
| Length W/O Screed | 21.33 ft in (6500 mm) |
| Track Width | 100.4 in (2550 mm) |
| Tire Size | Front 4x560/100-410, Rear 14.00R-25 |
| Width W/ Hopper Open | 11.11 ft in (3386 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | TCD 2012 L06 |
| Gross Power | 161 hp (120 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight W/ Screed | 36376.3 lb (16500 kg) |
| Operating Voltage | 24 V |
Hopper/Paver
| Hopper Capacity | 7.8 lb (5.9 kg) |
| Paving Width - Std | 8.4 ft in (2550 mm) |
| Paving Width - Max | 24 ft in (7300 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 95.2 ft/min (29 m/min) |
| Travel Speed - Max | 12.2 mph (19.5 km/h) |
| Auger Diameter | 15 in (380 mm) |
