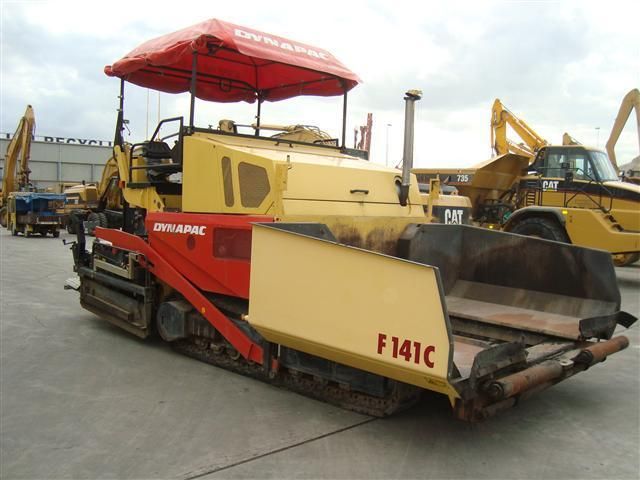

Dynapac F141C
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 10.21 ft in (3110 mm) |
| Length W/O Screed | 21.35 ft in (6505 mm) |
| Width W/ Hopper Open | 11.12 ft in (3388 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | TCD 2013 L06 |
| Gross Power | 190 hp (141.7 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight W/ Screed | 40785.6 lb (18500 kg) |
| Operating Voltage | 24 V |
Hopper/Paver
| Hopper Capacity | 7.9 lb (6 kg) |
| Paving Width - Std | 8.3 ft in (2500 mm) |
| Paving Width - Max | 29.6 ft in (9000 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 75.5 ft/min (23 m/min) |
| Travel Speed - Max | 2.8 mph (4.5 km/h) |
| Auger Diameter | 15 in (380 mm) |
