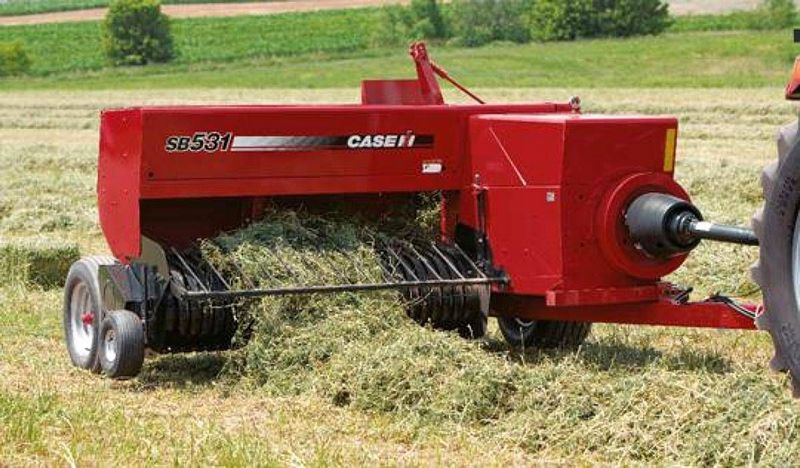

Case IH SB531
Contents:
Baler Pickup
| Windguard Description | 8 rods |
| Standard Pickup Lift | Manual |
| Sweep Width Inside | 64.97 in (1650 mm) |
| Sweep Width On Flare | 70.08 in (1780 mm) |
| Tine Spacing | 2.64 in (67 mm) |
| Width Between Outside Tines | 58 in (1473 mm) |
| Number Of Tine Bars | 5 |
| Number Of Tines | 110 |
| Optional Pickup Lift | Hydraulic |
| Pickup Position | Offset to right side |
| Pickup Protection | V-belt slippage & lost motion reel drive |
Dimensions
| Length Without Bale Chute | 205 in (5207 mm) |
| Max. Height | 70 in (1778 mm) |
| Tractor Pto Power Required | 62 hp (46.24 kw) |
| Width | 9.17 ft in (2794 mm) |
| Length With Bale Chute | 247.01 in (6274 mm) |
Tying Mechanism
| Tying Mechanism Type | Knotter |
| Tying Twine Capacity | 6balls |
| Tying Capacity | 4 |
| Tying Wire Capacity | No wire |
Maindrive
| Flywheel Diameter | 22.1 in (559 mm) |
| Flywheel Weight | 247 lb (112 kg) |
| Pto Driveline | Std three-joint, Category 4 |
| Pto Speed | 540 rpm |
| Main Drive Protection | Std three-joint, Category 4 |
Sales Literature
| Literature Number | CIH7180801 |
| Literature Date | July, 2008 |
| Document Number | 86624842 |
| Document Date | 10/1/2001 |
Years Of Manufacture
| Manufacturing Status | Current |
| First Entry Date | 8/21/2008 |
| Revision Date | 2/27/2012 |
Bale Size
| Bale Cross Section,Height X Width(In,Mm) | 14 x 18 (356 x 457) |
| Bale Length Range (In,Mm) | 12 to 52 (305 to 1321) |
| Density Control, Standard | Adj spring loaded tension rails |
| Density Control, Optional | No option |
| Bale Thrower Compatible | BTX11 available (80 lb bale) |
Feeding
| Feeder Description | Rotary feeder w/ packer |
| Feeder Opening Sq In (Sq Cm) | 283 (1826), right side entry |
Tires
| Standard Tireleft | 31 x 13.50 - 15, 6PR |
Weights
| Weight With Twine Tie | 3399.6 lb (1542 kg) |
Tires
| Standard Tire Right | 27 x 9.50 - 15, 6PR |
Plunger
| Plunger Speed (Strokes/Min) | 93 |
| Plunger Stroke | 30 in (762 mm) |
