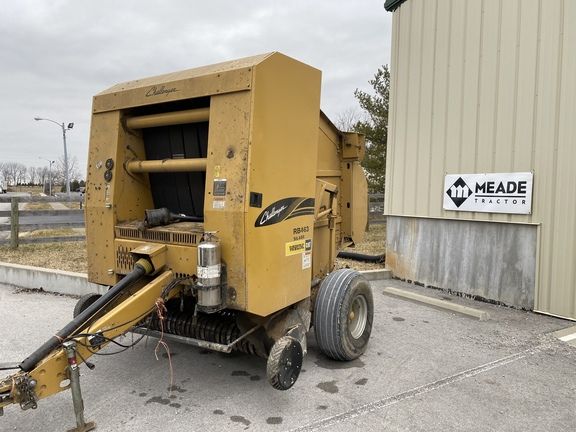

Challenger RB463
Browse All Challenger or Baler Models
Contents:
Baler Pickup
| Overall Width | 6.47 ft in (1.98 m) |
| Number Of Tines | 96 |
| Tine To Tine Width | 4.99 ft in (1.52 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 12.37 ft in (3768 mm) |
| Overall Width | 8.55 ft in (2604 mm) |
| Overall Height | 9.59 ft in (2921 mm) |
| Tractor Pto Power Required | 65 hp (48.48 kw) |
| Weight | 6120 lb (2775.99 kg) |
Bale Size
| Bale Width | 3.9 ft in (1182 mm) |
| Bale Diameter - Min | 2.5 ft in (762 mm) |
| Bale Diameter - Max | 6.1 ft in (1829 mm) |
| Bale Weight - Min | 1644 lb (745.8 kg) |
| Bale Weight - Max | 2200 lb (998 kg) |
Bale Chamber
| Number Of Belts | 6 Laced, WedgeGrip Pattern |
| Belt Width | 7 in (17.8 cm) |
Wrapping System
| Twine Type | Automatic, Electric Actuated |
| Twine Ball Capacity | 8 |
