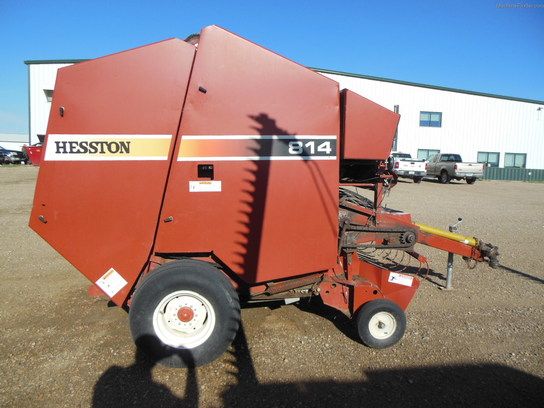

Hesston 814
Contents:
Baler Pickup
| Overall Width | 5.87 ft in (1.79 m) |
| Number Of Tines | 4 |
| Tine To Tine Width | 4.84 ft in (1.48 m) |
| Number Of Bars | 44 double |
Dimensions
| Overall Length | 14.44 ft in (4400 mm) |
| Overall Width | 8.5 ft in (2590 mm) |
| Overall Height | 8.01 ft in (2440 mm) |
| Tractor Pto Power Required | 70 hp (52.2 kw) |
| Weight | 4784.04 lb (2170 kg) |
Bale Size
| Bale Width | 5 ft in (1524 mm) |
| Bale Diameter - Min | 6.1 ft in (1829 mm) |
| Bale Weight - Min | 600 lb (272.2 kg) |
| Bale Weight - Max | 2000 lb (907.2 kg) |
Bale Chamber
| Number Of Belts | 5 Floor, 25 Forming, Endless |
| Belt Width | 11 in (28 cm) |
Wrapping System
| Twine Type | Electric, With Position Feedback |
| Twine Ball Capacity | 8 |
