Hesston 5134
Contents:
Baler Pickup
| Overall Width | 3.24 ft in (0.99 m) |
| Number Of Tines | 42 |
| Tine To Tine Width | 2.82 ft in (0.86 m) |
| Number Of Bars | 3 |
Dimensions
| Overall Length | 11.01 ft in (3353 mm) |
| Overall Width | 6.21 ft in (1892 mm) |
| Overall Height | 7.01 ft in (2134 mm) |
| Tractor Pto Power Required | 30 hp (22.38 kw) |
| Weight | 2780.03 lb (1261 kg) |
Bale Size
| Bale Width | 3.3 ft in (991 mm) |
| Bale Diameter - Min | 2.5 ft in (762 mm) |
| Bale Diameter - Max | 4.4 ft in (1321 mm) |
| Bale Weight - Min | 549 lb (249 kg) |

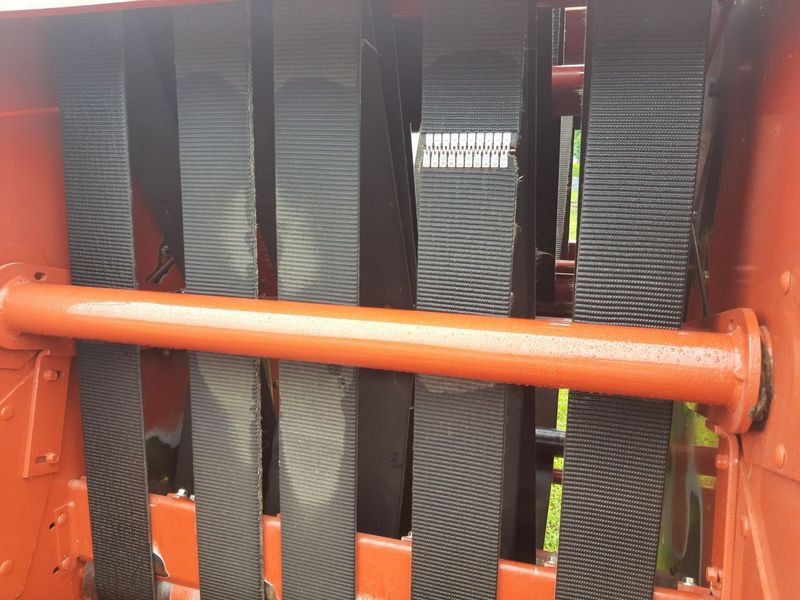

Bale Chamber
| Number Of Belts | 5 |
| Belt Width | 4.9 in (12.2 cm) |
Wrapping System
| Twine Type | manually - rope actuated twine |
| Twine Ball Capacity | 2 |
