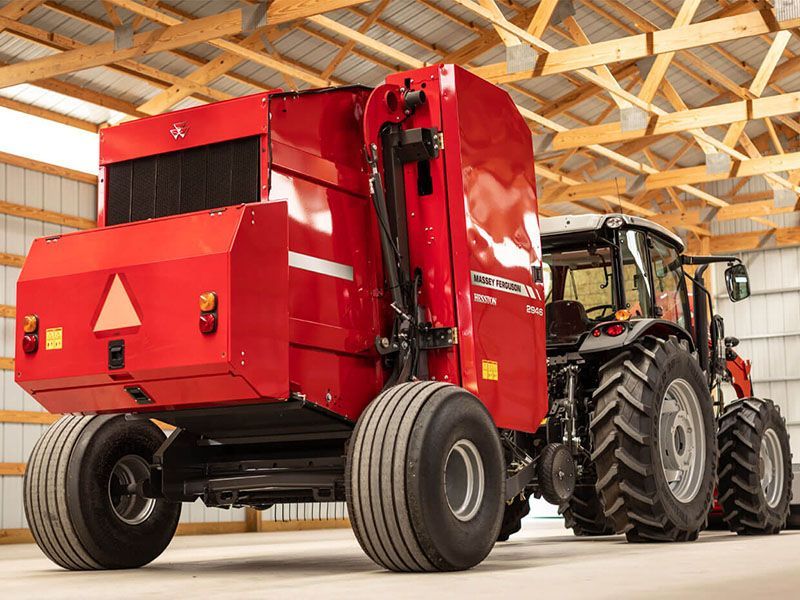

Massey Ferguson 2946A
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Inside Width | 67.6 in (1717 mm) |
| Number Of Bars | 4 |
| Number Of Tines | 104 |
| Outer Tine-To-Tine Width | 83.71 in (2126 mm) |
| Tine To Tine Width | 5.42 ft in (1.66 m) |
| Windguard Description | Optional roller |
Dimensions
| Overall Length | 13.63 ft in (4153 mm) |
| Overall Width | 8.46 ft in (2578 mm) |
| Overall Height | 10.09 ft in (3073 mm) |
| Weight | 6075.94 lb (2756 kg) |
| Tractor Pto Power Required | 64.37 hp (48 kw) |
Engine
| Pto Speed | 1000 rpm |
Bale Size
| Bale Width | 3.9 ft in (1181 mm) |
| Bale Diameter - Max | 6.1 ft in (1829 mm) |
| Bale Weight - Min | 1644.7 lb (746 kg) |
Engine
| Weight | 5998.8 lb (2721 kg) |
Bale Chamber
| Number Of Belts | 6 Laced , WedgeGrip Pattern |
| Belt Width | 7 in (17.8 cm) |
Tires
| Standard | 21.5L x 16.1 |
Hydraulic System
| Hydraulic Remote Valves | One double acting |
Wrapping System
| Twine Type | Auto-Tie– electric actuated |
| Twine Ball Capacity | 12 |
