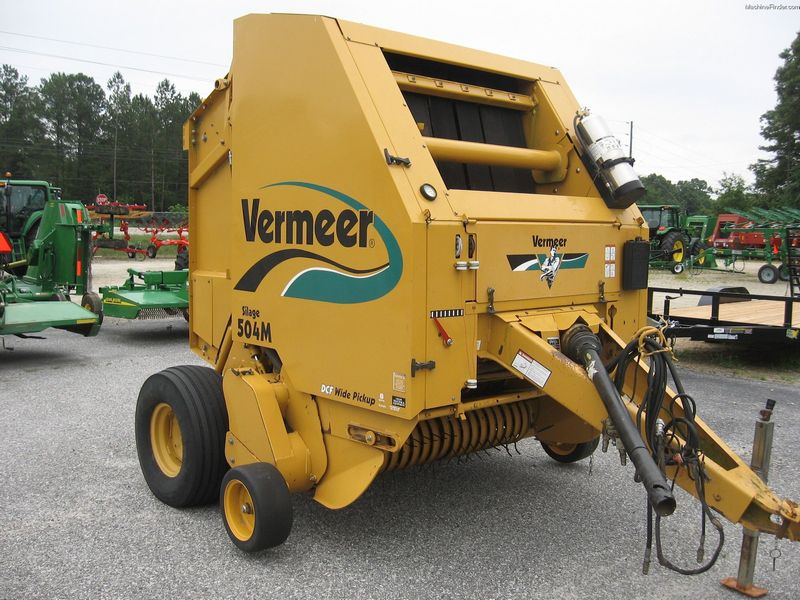

Vermeer 504M
Contents:
Baler Pickup
| Overall Width | 6.44 ft in (1.96 m) |
| Number Of Bars | 10 |
| Number Of Tines | 55 |
| Tine To Tine Width | 5.29 ft in (1.61 m) |
| Lift Type | hydraulic pickup |
Dimensions
| Overall Length | 12.83 ft in (3910 mm) |
| Overall Width | 8.24 ft in (2510 mm) |
| Overall Height | 8.93 ft in (2720 mm) |
| Tractor Pto Power Required | 60 hp (44.75 kw) |
| Weight | 6000.99 lb (2722 kg) |
Bale Size
| Bale Width | 4 ft in (1190 mm) |
| Bale Diameter - Min | 2 ft in (600 mm) |
| Bale Diameter - Max | 5.2 ft in (1570 mm) |
| Bale Weight - Max | 2198.1 lb (997 kg) |
Bale Chamber
| Number Of Belts | 6 |
| Belt Width | 6.9 in (17.3 cm) |
Wrapping System
| Twine Type | automatic twine tie |
| Twine Ball Capacity | 6 |
