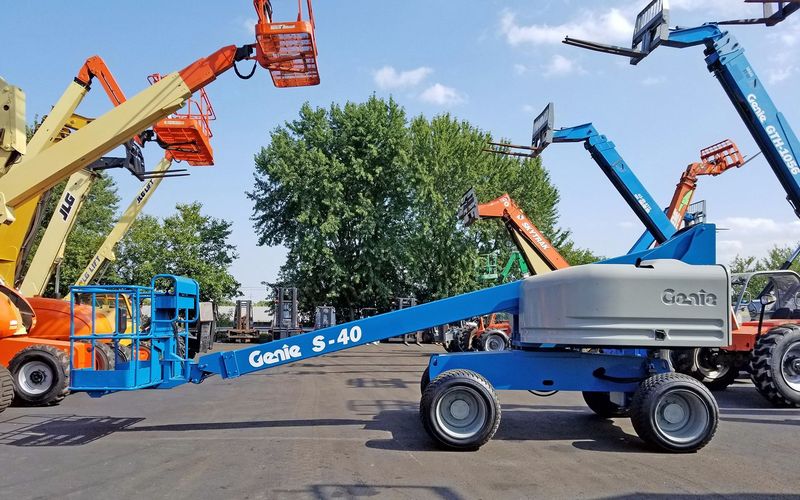

Genie S40
Contents:
Dimensions
| Overall Length | 24.25 in (7390 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Overall Height - Mast Lowered | 8.17 ft in (2490 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Ground Clearance | 12.6 in (320 mm) |
| Turning Radius | 15.69 ft in (4780 mm) |
| Weight | 12310.62 lb (5584 kg) |
Platform
| Max Platform Height | 40 ft in (12190 mm) |
| Max Horizontal Reach | 31.73 ft in (9670 mm) |
| Platform Inner Width | 96.07 in (2440 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Inner Length | 35.83 in (910 mm) |
| Max Working Height | 46.56 ft in (14190 mm) |
| Platform Rotation | 160 degrees |
Engine
| Power | 49 hp (36.54 kW) Deutz diesel T4f D2.9L4 |
| Engine Make | 2380 |
| Engine Model | DSG 423 |
| Gross Power | 75 hp (56 kw) |
| Fuel Type | Gas/LPG |
Capacities
| Auxiliary Power Unit | 12 V DC |
| Fuel Tank | 20.1 gal (76 L) |
| Hydraulic Tank | 45 gal (170 L) |
| Lift Capacities | 500.5 lb (227 kg) |
Operational
| Turning Radius - Axle Outside | 15.7 ft in (4.8 m) |
| Controls | 12 V DC proportional |
| Turning Radius - Axle Inside | 6.6 ft in (2 m) |
| Drive Speed - Stowed | 4.8 mph (7.8 km/h) |
| Drive Speed - Raised | 0.7 mph (1.1 km/h) |
| Below Ground Reach | 3.2 ft in (1 m) |
| Operating Weight | 11649.3 lb (5284 kg) |
| Fuel Capacity | 20.1 gal (76 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Max Speed | 4.8 mph (7.7 km/h) |
| Tire Size | 12.5L-16SL front / 12-16.5 NHS rear |
