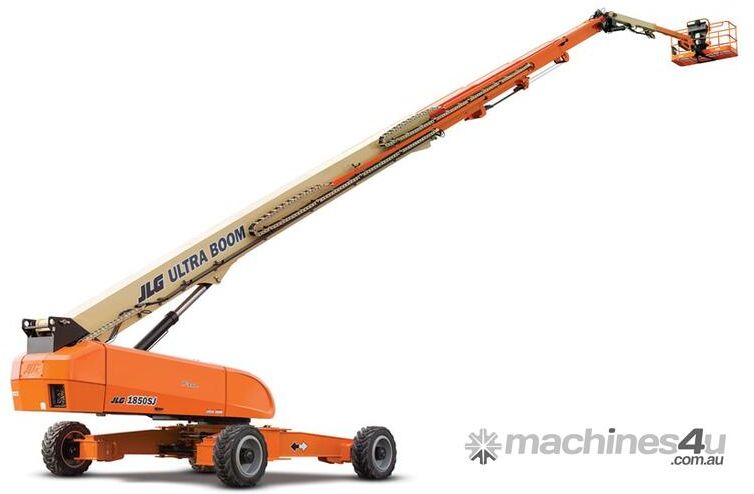

JLG 1850SJ
Contents:
Dimensions
| Overall Length | 63.1 ft in (19.24 m) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Overall Height - Mast Lowered | 10 ft in (3048 mm) |
| Ground Clearance | 0.02 in (0.41 mm) |
| Transport Length | 47.1 ft in (14.36 m) |
| Overall Width (Axles Extended) | 16.61 ft in (5.06 m) |
| Platform Dimension A | 3 ft in (0.92 m) |
| Platform Dimension B | 8 ft in (2.44 m) |
| Tailswing Radius | 7.7 ft in (2346.96 mm) |
Platform
| Max Platform Height | 185 ft in (56388 mm) |
| Max Horizontal Reach | 80 ft in (24384 mm) |
| Platform Capacity - Restricted | 1000 lb (453.6 kg) |
| Platform Capacity - Unrestricted | 500 lb (226.8 kg) |
Swing System
| Swing | 360 degrees |
| Swing Type | Continuous |
Engine
| Diesel Engine Type | Deutz TD3.6L 99.8 HP |
| Maximum Ground Bearing Pressure | 119.6 psi (824.7 kPa) |
| System Voltage | 12 V |
Operational
| Operating Weight | 60300 lb (27351.7 kg) |
| Fuel Capacity | 52.8 gal (199.9 L) |
| Hydraulic System Fluid Capacity | 75.1 gal (284.3 L) |
| Tire Size | 445/500710 Foam-Filled |
Performance
| Drive Speed | 2.8 mph (4.6 km/h) |
| Gradeability | 40 % |
| Turning Radius - Outside (Axles Extended) | 21.8 ft in (6.7 m) |
| Turning Radius - Outside (Axles Retracted) | 31.3 ft in (9.6 m) |
