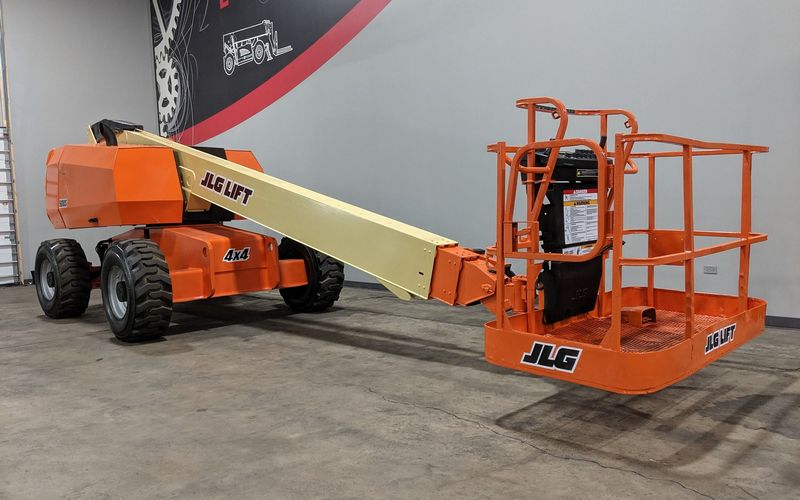

JLG 600S 4WD
Contents:
Dimensions
| Overall Length | 343 in (8712.21 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Overall Height - Mast Lowered | 8.44 ft in (2570 mm) |
| Wheelbase | 8.08 ft in (2460 mm) |
| Ground Clearance | 11 in (279.4 mm) |
| Tailswing Radius | 4 ft in (1219.2 mm) |
| Overall Height | 8.2 ft in (2499.36 mm) |
| Platform Dimension A | 2.99 ft in (0.91 m) |
| Platform Dimension B | 8.01 ft in (2.44 m) |
| Turning Radius | 12.8 ft in (3901.44 mm) |
Platform
| Max Platform Height | 60.24 ft in (18360 mm) |
| Max Horizontal Reach | 50.2 ft in (15300.96 mm) |
| Platform Railing Height | 59.68 ft in (18.2 m) |
| Platform Rotation | 160 degrees |
| Platform Inner Width | 35.83 in (910 mm) |
| Platform Inner Length | 96.07 in (2440 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
Engine
| Fuel Tank | 31 gal (117.4 L) |
| Diesel Engine Type | Deutz TD2.9L4 Tier 4 Final |
| Diesel Engine Power | 67 hp (50 kw) |
| Dual Fuel Engine Type | Ford MSG425-DF |
| Dual Fuel Engine Power | 84 hp (62.7 kw) |
| Engine Make | 2349 |
| Engine Model | F4M2011 |
| Gross Power | 64.4 hp (48 kw) |
| Fuel Type | Diesel |
| System Voltage | 12 V |
Operational
| Operating Weight | 21461 lb (9734.6 kg) |
| Fuel Capacity | 39.9 gal (151 L) |
| Hydraulic System Fluid Capacity | 34 gal (128.8 L) |
| Max Speed | 4.3 mph (6.8 km/h) |
| Tire Size | 41/181.1 X 22.5 |
| Tire Fill/Type | Lug Tread |
Performance
| Axle Oscillation | 0.7 ft in (0.2 m) |
| Drive Speed | 3.8 mph (6.2 km/h) |
| Swing | 360 degrees |
| Gradeability | 45 % |
