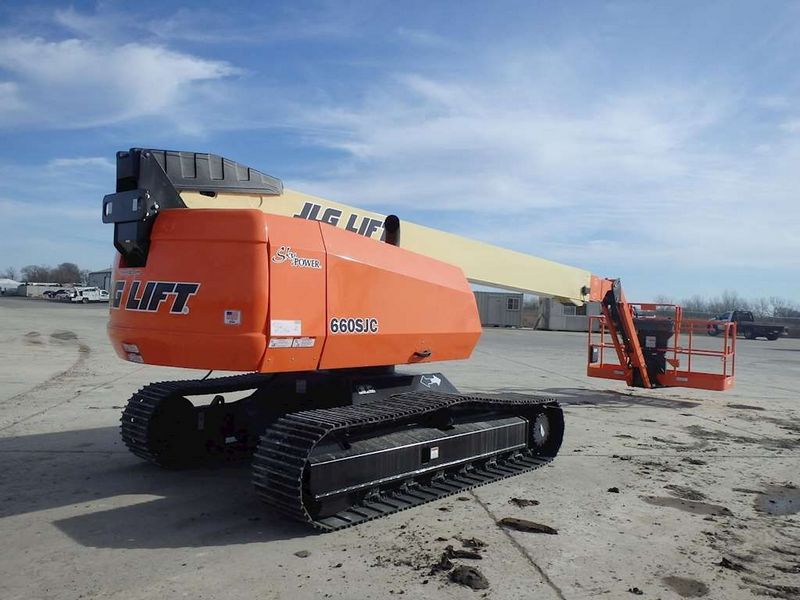

JLG 660SJC
Contents:
Dimensions
| Overall Length | 35.5 in (901.7 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Overall Height - Mast Lowered | 8.2 ft in (2499.36 mm) |
| Ground Clearance | 15 in (381 mm) |
| Track Width | 1.8 ft in (0.55 m) |
| Platform Dimension A | 3 ft in (0.92 m) |
| Platform Dimension B | 8 ft in (2.44 m) |
| Tailswing Radius | 4 ft in (1219.2 mm) |
Platform
| Max Platform Height | 65.7 ft in (20025.36 mm) |
| Max Horizontal Reach | 57.1 ft in (17404.09 mm) |
| Platform Capacity - Restricted | 750 lb (340.2 kg) |
| Platform Capacity - Unrestricted | 550 lb (249.48 kg) |
Engine
| Diesel Engine Type | Deutz TD2.9L4 Tier4 Final |
| Maximum Ground Bearing Pressure | 6.5 psi (44.9 kPa) |
| Fuel Type | Diesel |
| System Voltage | 12 V |
Operational
| Operating Weight | 29339 lb (13308 kg) |
| Fuel Capacity | 31 gal (117.4 L) |
| Hydraulic System Fluid Capacity | 34 gal (128.8 L) |
Performance
| Drive Speed | 1.6 mph (2.6 km/h) |
| Swing | 360 degrees |
| Swing Type | Continuous |
| Gradeability | 55 % |
