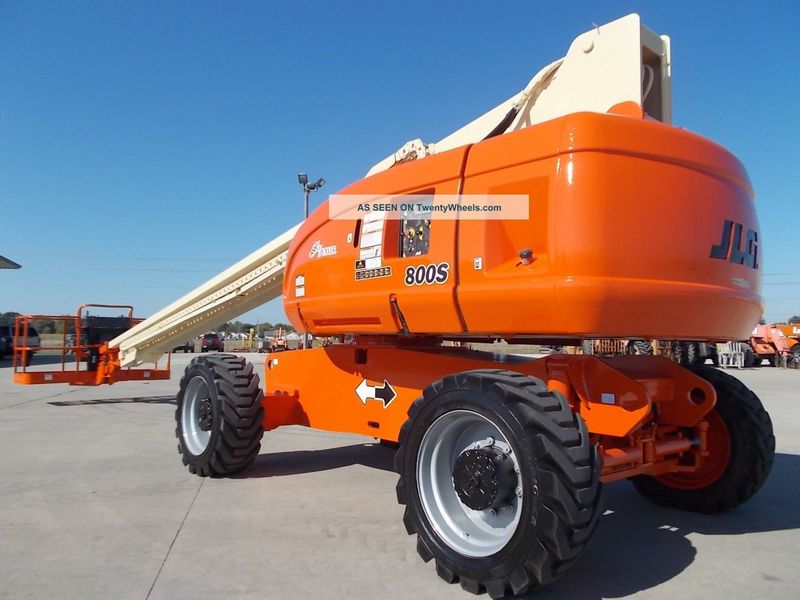

JLG 800S
Contents:
Dimensions
| Overall Length | 37.3 in (947.42 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Overall Height - Mast Lowered | 9.11 ft in (2776.73 mm) |
| Ground Clearance | 11 in (279.4 mm) |
| Turning Radius | 19.8 ft in (6035.04 mm) |
| Platform Dimension A | 3 ft in (0.92 m) |
| Platform Dimension B | 8 ft in (2.44 m) |
| Tailswing Radius | 4.8 ft in (1463.04 mm) |
Platform
| Max Platform Height | 80 ft in (24384 mm) |
| Max Horizontal Reach | 71 ft in (21640.8 mm) |
| Platform Capacity - Restricted | 1000 lb (453.6 kg) |
| Platform Capacity - Unrestricted | 500 lb (226.8 kg) |
Swing System
| Swing | 360 degrees |
| Swing Type | Continuous |
Engine
| Diesel Engine Type | DEUTZ TD 2.9L Tier 4 Final 67 hp |
| Dual Fuel Engine Type | Ford MSG425 84hp |
| Maximum Ground Bearing Pressure | 72 psi (496.5 kPa) |
| System Voltage | 12 V |
Operational
| Operating Weight | 33030 lb (14982.2 kg) |
| Fuel Capacity | 31 gal (117.4 L) |
| Hydraulic System Fluid Capacity | 48 gal (181.7 L) |
| Tire Size | 15-625 Pnuematic |
Performance
| Axle Oscillation | 0.7 ft in (0.2 m) |
| Drive Speed | 3.5 mph (5.7 km/h) |
