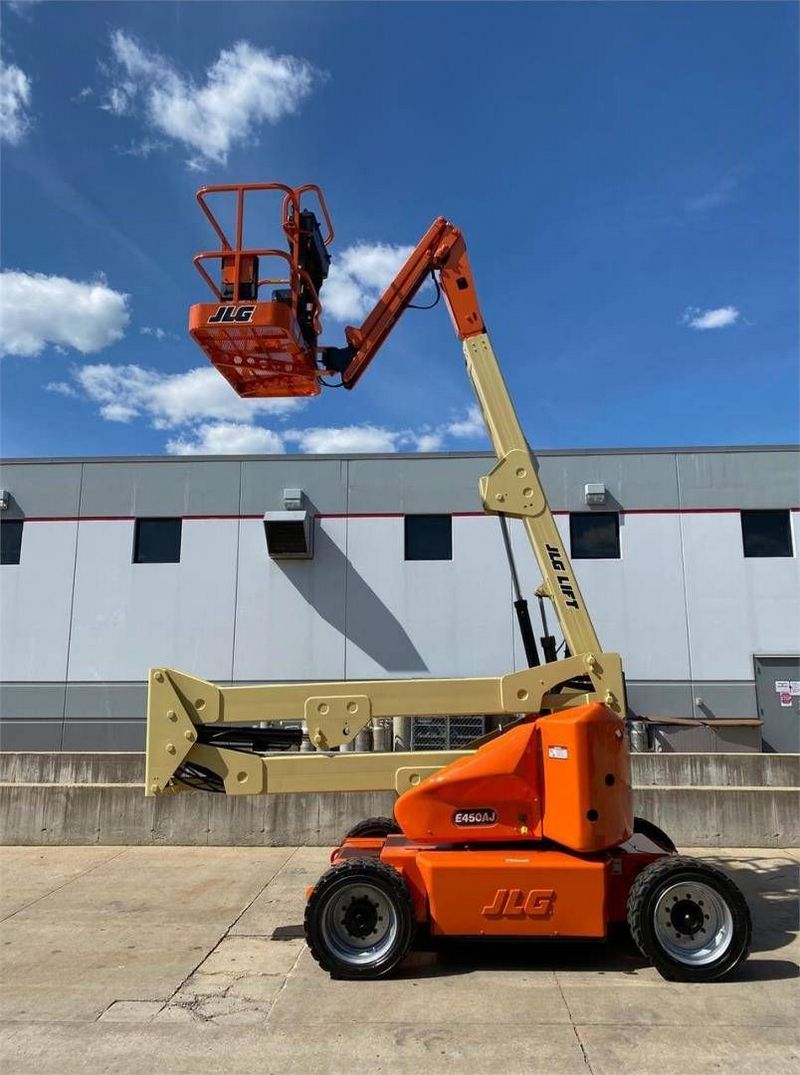

JLG E450AJ
Contents:
Dimensions
| Overall Length | 21.2 in (538.48 mm) |
| Overall Width | 5.9 ft in (1798.32 mm) |
| Overall Height - Mast Lowered | 6.7 ft in (2042.16 mm) |
| Wheelbase | 6.7 ft in (2042.16 mm) |
| Ground Clearance | 9 in (228.6 mm) |
| Platform Dimension A | 2.6 ft in (0.8 m) |
| Turning Radius | 10.4 ft in (3169.92 mm) |
| Platform Dimension B | 5 ft in (1.53 m) |
Platform
| Max Platform Height | 45 ft in (13716 mm) |
| Max Horizontal Reach | 23.9 ft in (7284.72 mm) |
| Platform Capacity - Unrestricted | 500 lb (226.8 kg) |
| Platform Inner Length | 59.85 in (1520 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Platform Rotation | 180 degrees |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 25.3 ft in (7711.44 mm) |
Engine
| System Voltage | 48 V |
| Number Of Batteries | 8 |
| Battery Amp Hours | 370 |
Operational
| Operating Weight | 14400.6 lb (6532 kg) |
| Max Speed | 3.3 mph (5.2 km/h) |
| Tire Size | 240/55-17.5 |
| Tire Fill/Type | pneumatic |
Performance
| Drive Speed | 3.2 mph (5.2 km/h) |
| Swing | 360 degrees |
| Gradeability | 30 % |
| Platform Capacity | 500 lb (226.8 kg) |
| Jib - Range Of Articulation | 141 degrees |
Hydraulic
| Hydraulic Reservoir | 4 gal (15.2 L) |
