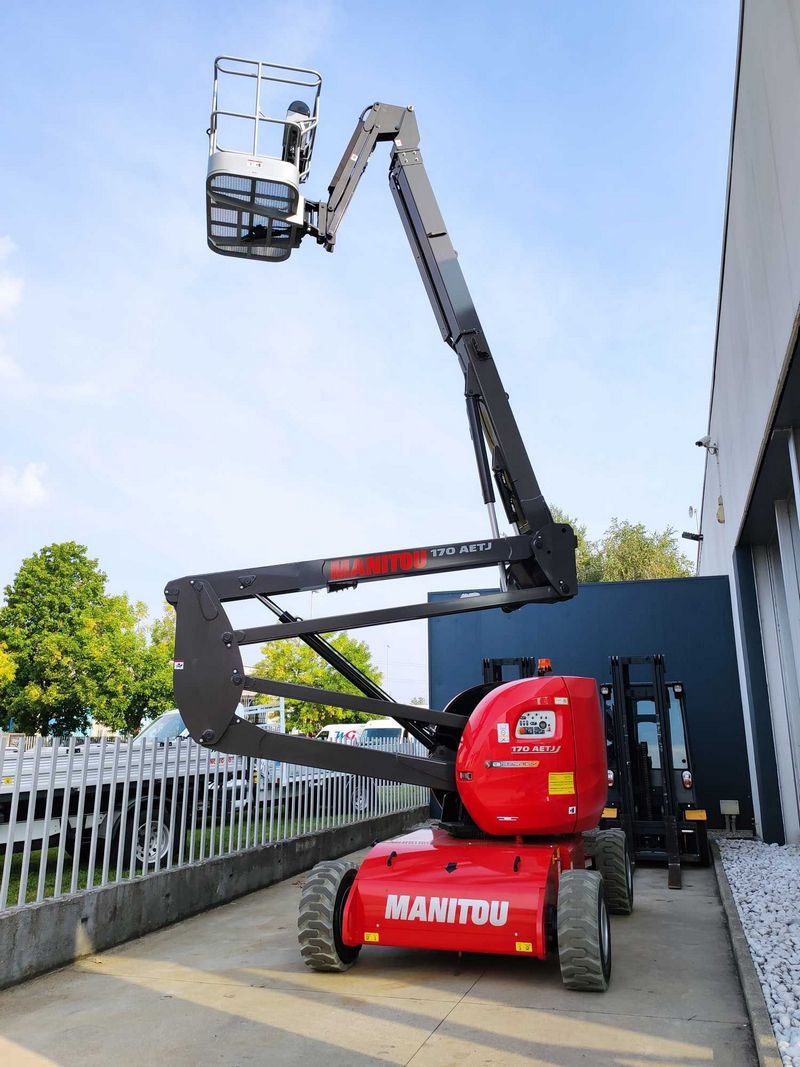

Manitou 170AETJL Bi-Energy
Contents:
Dimensions
| Overall Length | 22.87 in (6970 mm) |
| Overall Width | 6.24 ft in (1900 mm) |
| Overall Height - Mast Lowered | 6.89 ft in (2100 mm) |
| Turning Radius | 14.01 ft in (4270 mm) |
Platform
| Max Platform Height | 49.22 ft in (15000 mm) |
| Max Horizontal Reach | 30.94 ft in (9430 mm) |
| Max Working Height | 55.78 ft in (17000 mm) |
| Platform Inner Width | 36.23 in (920 mm) |
| Platform Rotation | 140 degrees |
| Platform Inner Length | 47.25 in (1200 mm) |
| Max Platform Weight Capacity | 507.07 lb (230 kg) |
Engine
| Engine Make | 2392 |
| Engine Model | FOCS 702 |
| Gross Power | 13.2 hp (9.8 kw) |
| System Voltage | 48 V |
| Battery Amp Hours | 100 |
Operational
| Operating Weight | 16391.4 lb (7435 kg) |
| Max Speed | 3.8 mph (6 km/h) |
| Tire Size | 12'' |
| Tire Fill/Type | Foam |
