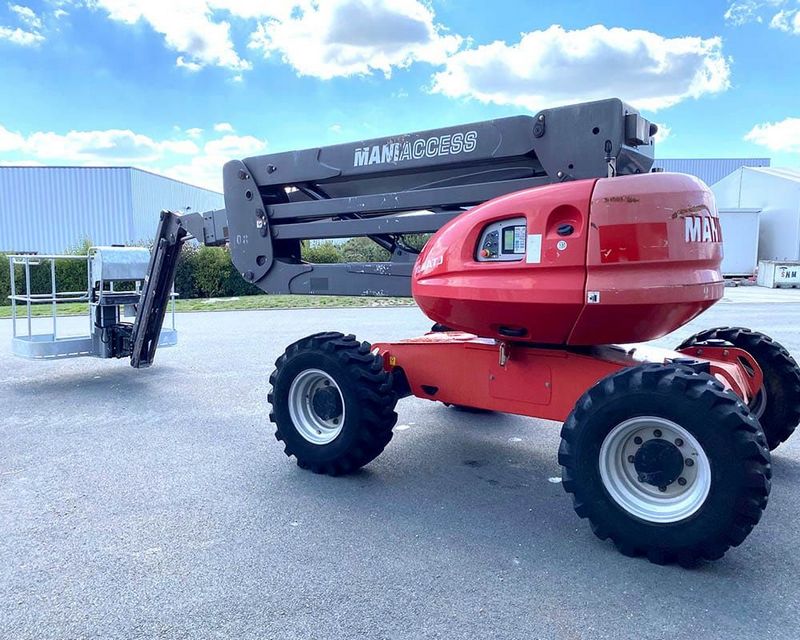

Manitou 180ATJ
Contents:
Dimensions
| Overall Length | 25.51 in (7775 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Overall Height - Mast Lowered | 7.78 ft in (2370 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Ground Clearance | 16.74 in (425 mm) |
| Turning Radius | 12.01 ft in (3660 mm) |
Platform
| Max Platform Height | 51.35 ft in (15650 mm) |
| Max Horizontal Reach | 34.78 ft in (10600 mm) |
| Platform Inner Width | 31.5 in (800 mm) |
| Platform Rotation | 180 degrees |
| Platform Inner Length | 70.87 in (1800 mm) |
| Max Working Height | 57.91 ft in (17650 mm) |
| Lift Time | 40 sec |
| Max Platform Weight Capacity | 507.07 lb (230 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 404C22 |
| Gross Power | 45 hp (33.6 kw) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 17835.4 lb (8090 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 14.3 gal (54 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Tire Size | 12.5-18 |
