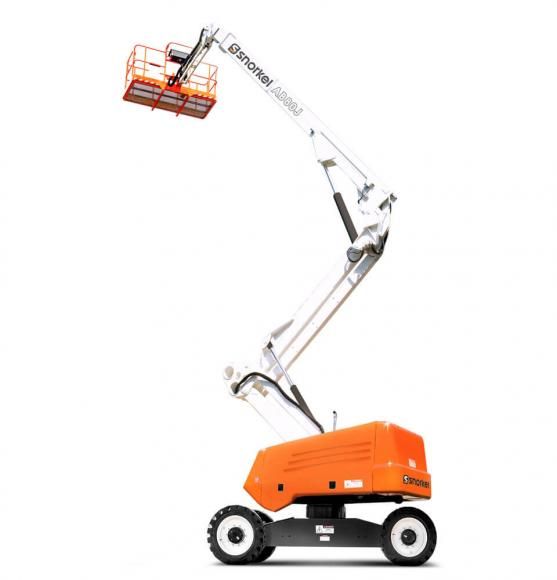

Snorkel AB80J 4x4
Contents:
Dimensions
| Overall Length | 29.2 in (8900 mm) |
| Overall Width | 7.88 ft in (2400 mm) |
| Overall Height - Mast Lowered | 9.85 ft in (3000 mm) |
| Wheelbase | 7.88 ft in (2400 mm) |
Platform
| Max Platform Height | 60.04 ft in (18300 mm) |
| Max Horizontal Reach | 42.98 ft in (13100 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Inner Length | 59.85 in (1520 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Platform Rotation | 180 degrees |
Engine
| Fuel Type | Gas or Diesel |
Operational
| Operating Weight | 24599.2 lb (11158 kg) |
| Fuel Capacity | 40 gal (151.4 L) |
| Hydraulic System Fluid Capacity | 35.1 gal (132.5 L) |
| Max Speed | 3.5 mph (5.6 km/h) |
| Tire Size | 15 x 19.5 |
| Tire Fill/Type | form filled |
