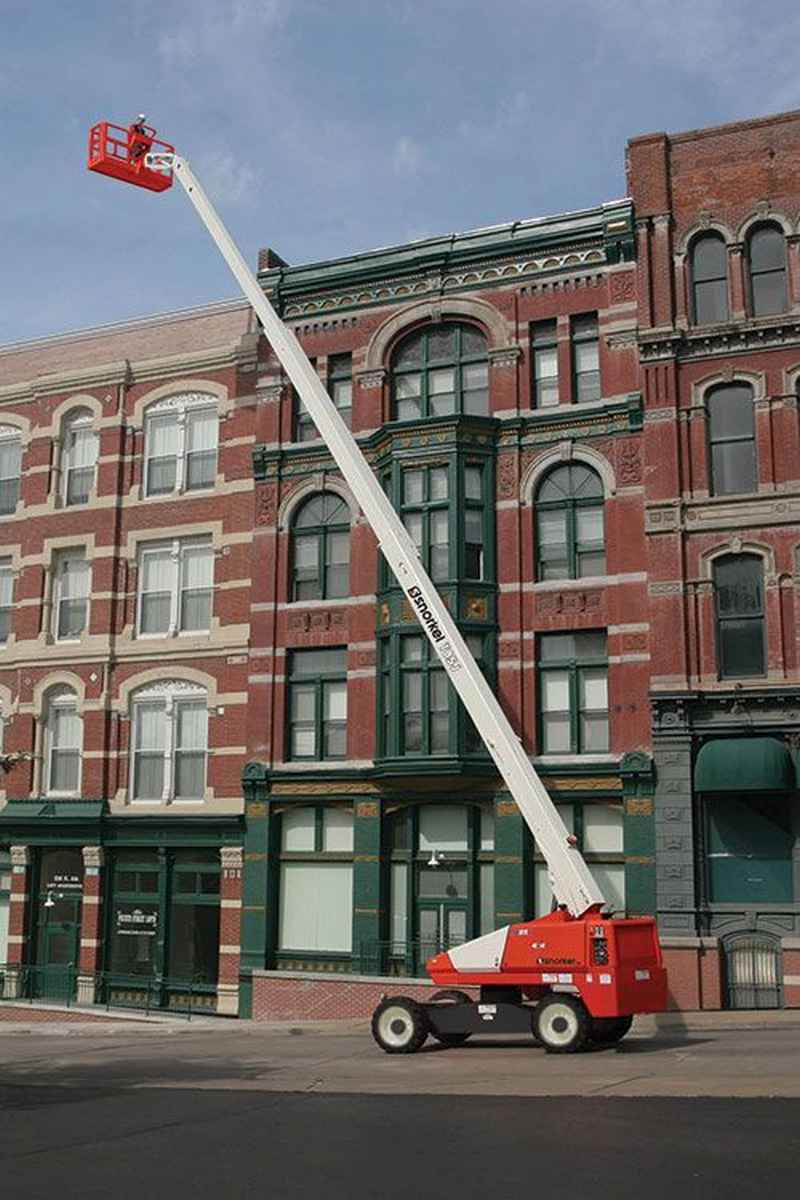

Snorkel TB120
Contents:
Dimensions
| Overall Length | 42.33 in (12900 mm) |
| Overall Width | 8.54 ft in (2600 mm) |
| Overall Height - Mast Lowered | 9.85 ft in (3000 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
Platform
| Max Platform Height | 120.08 ft in (36600 mm) |
| Max Horizontal Reach | 62.01 ft in (18900 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Inner Length | 96.07 in (2440 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
Engine
| Fuel Type | gas/diesel |
Operational
| Operating Weight | 39500.3 lb (17917 kg) |
| Fuel Capacity | 50.1 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 89.9 gal (340 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 15x22.5 |
| Tire Fill/Type | Foam |
