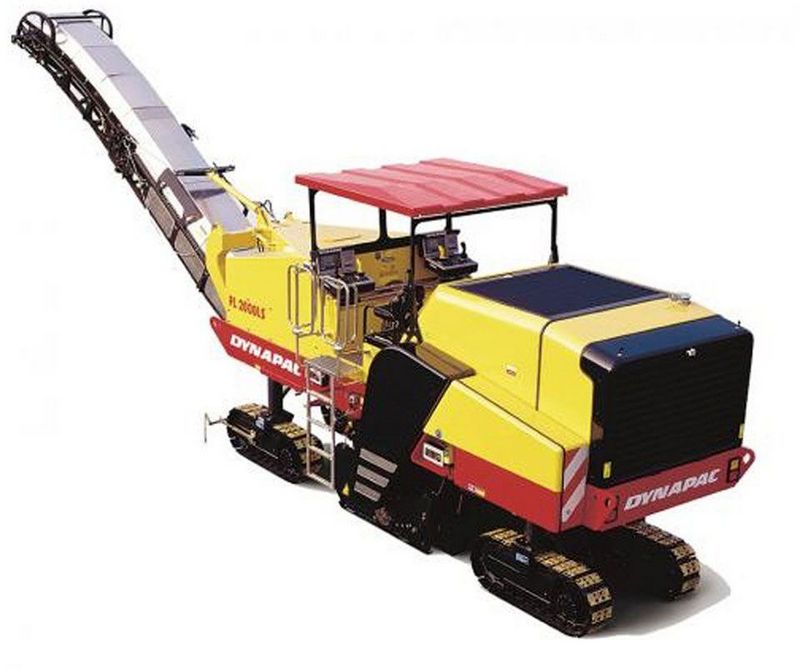

Dynapac PL2000LS
Browse All Dynapac or Cold Planer Models
Contents:
Dimensions
| Operating Length | 49.55 ft in (15100 mm) |
| Shipping Width | 8.37 ft in (2550 mm) |
| Shipping Height | 10.18 ft in (3100 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSX 15 |
| Gross Power | 599.5 hp (447 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight - Full Load | 61400 lb (27850.6 kg) |
| Shipping Weight - Empty | 56400 lb (25582.7 kg) |
| Fuel Capacity | 290.6 gal (1100 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Water Spray System Fluid Capacity | 977.5 gal (3700 L) |
| Operating Speed | 131.3 ft/min (40 m/min) |
| Travel Speed | 3.2 mph (5 km/h) |
Rotary Cutter
| Cutting Width | 6.6 ft in (2010 mm) |
| Cutting Depth | 12.6 in (320 mm) |
| Cutter Diameter | 43.4 in (1100 mm) |
| Number Of Tools | 167 |
| Tool Spacing | 0.6 in (15 mm) |
