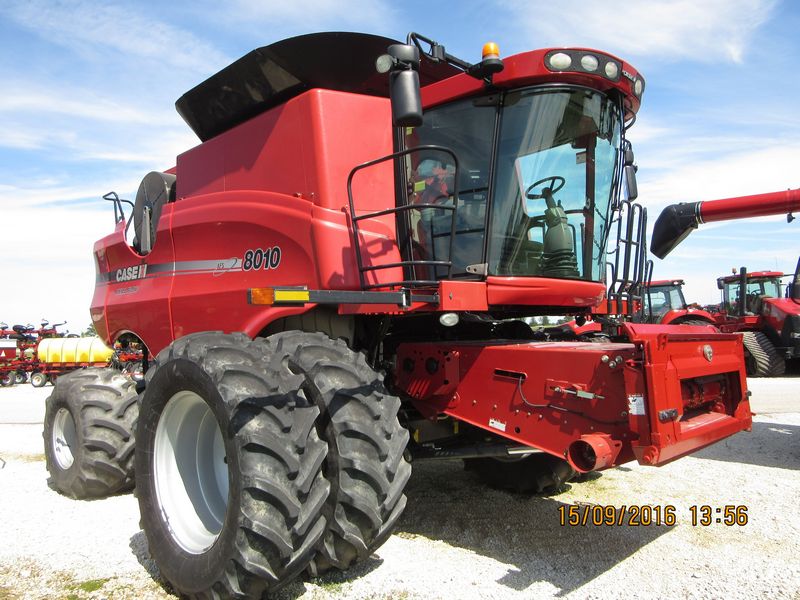

Case IH Axial-Flow 8010
Contents:
Dimensions
| Width Over Tires | 13.03 ft in (3970 mm) |
| Wheelbase | 12.2 ft in (3718 mm) |
| Height To Top Of Isomount Cab | 12.41 ft in (3780 mm) |
Engine
| Engine Make | 2408 |
| Power | 400 hp (298.3 kw) |
| Power Boost Power | 450 hp (335.6 kw) |
| Displacement | 628.6 cu in (10.3 L) |
Operational
| Operating Weight W/O Attachment | 35500 lb (16102.6 kg) |
| Fuel Capacity | 264 gal (999.4 L) |
| Transmission Type | hydrostatic drive |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 30 in (762 mm) |
| Rotor Speed - Low | 220 rpm |
| Rotor Speed - High | 1180 rpm |
Cleaning System
| Total Cleaning Area | 10695.1 in2 (6.9 m2) |
| Cleaning Fan Speed - Low | 300 rpm |
| Cleaning Fan Speed - High | 1150 rpm |
| Self Leveling? | Yes |
Grain Handling
| Grain Tank Capacity | 350 bu (12333.7 L) |
| Unloading Auger Length | 21 ft in (6.5 m) |
| Unloading Speed | 3.2 bu/sec (112.8 L/sec) |
