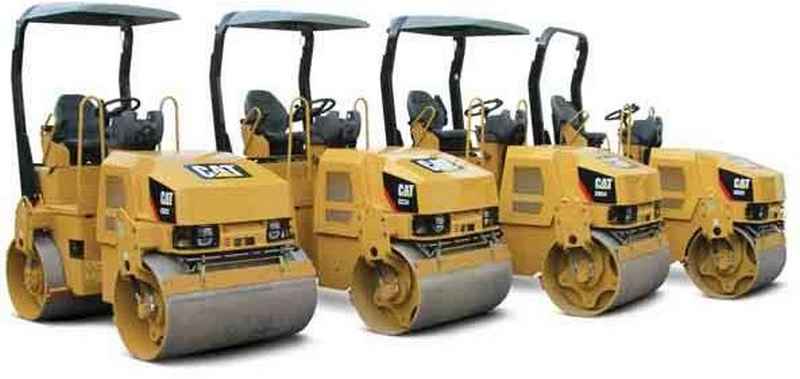

Caterpillar CB22B
Browse All Caterpillar or Compactor Models
Contents:
Dimensions
| Ground Clearance | 0.04 ft in (11 mm) |
| Wheelbase | 0.24 ft in (71 mm) |
| Maximum Machine Height | 102 in (2590.81 mm) |
| Overall Length | 8.42 ft in (2565.4 mm) |
| Overall Width | 3.67 ft in (1117.6 mm) |
| Drum Diameter | 28 in (711.2 mm) |
| Wheel Base | 5.92 ft in (0.16 m) |
Operating Specifications
| Ground Clearance | 0.92 ft in (0.03 m) |
| Standard Compaction Width | 39 in (990.6 mm) |
| Static Linear Load | 72 lb (32.66 kg) |
| Travel Speed - Maximum | 7.5 mph (12.08 km/h) |
| Turning Radius - Inside Drum Edge | 105 in (2667 mm) |
| Curb Clearance | 24 in (609.6 mm) |
Engine
| Engine Model | C1.5 |
| Gross Power | 36.2 hp (27 kw) |
| Engine Model | C1.5 |
Operational
| Operating Weight | 5629 lb (2553.3 kg) |
| Fuel Capacity | 17 gal (64.4 L) |
Drum
| Drum Width | 39 in (990.6 mm) |
Transmission
| Max Speed | 7.5 mph (12.1 km/h) |
Weights
| Operating Weight | 5629 lb (2553.3 kg) |
| Maximum Weight At Front Drum | 2669 lb (1210.7 kg) |
| Maximum Weight At Rear Drum | 2960 lb (1342.7 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 17 gal (64.4 L) |
| Water Spray Tank Capacity | 62 gal (234.7 L) |
Vibratory System
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Centrifugal Force Per Drum - Maximum | 6475 lb (2937.1 kg) |
| Frequency | 63/55/42 Hz (3,780/3,300/2520 vpm) |
| Centrifugal Force Per Drum - Minimum | 2878 lb (1305.5 kg) |
