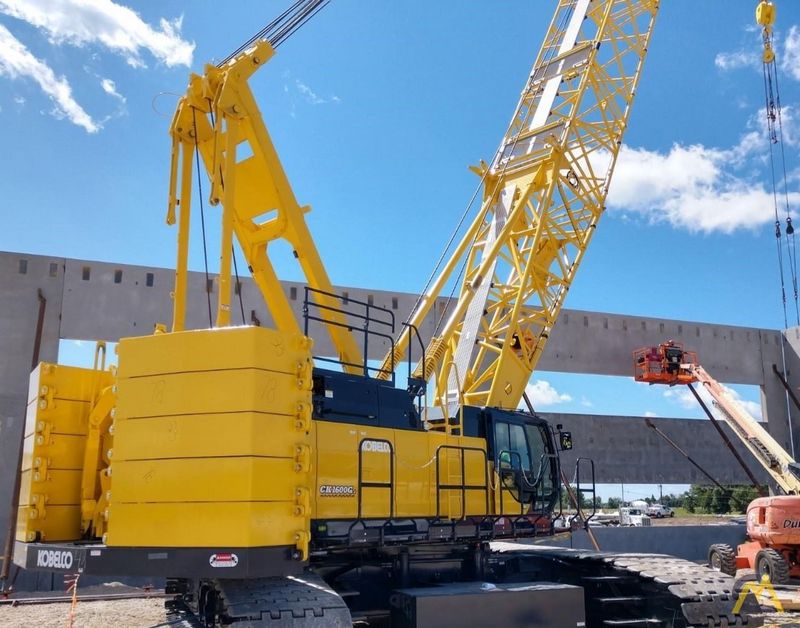

Kobelco CK1600G-2
Browse All Kobelco or Crawler Crane Models
Contents:
Engine
| Starter | 8.1 hp (6 kw) |
| Emission Tier Level | Tire 4 Final |
| Fuel Filter | Replaceable element |
| Fuel Tank | 105.7 gal (400 L) |
| Number Of Cylinders | 6 |
| Engine Model | P11C-VN |
| Gross Power | 365 hp (272.2 kw) |
| Air Cleaner | Dry type with replaceable paper element |
| Power Measured @ | 2100 rpm |
| Displacement | 469 cu in (7.7 L) |
| Max Torque | 1084.3 lb ft (1470 Nm) |
| Torque Measured @ | 1400 rpm |
| Bore | 4.9 in (122 mm) |
| Stroke | 6 in (150 mm) |
| Alternator | 80 amps |
Boom
| Boom Base Section | 25 ft in (7.6 m) |
| Boom Tip Section | 25 ft in (7.6 m) |
| Jib Tip Section | 15.1 ft in (4.6 m) |
| Jib Base Section | 15.1 ft in (4.6 m) |
| Basic Jib Length | 98.5 ft in (30 m) |
| Boom Length | 40 ft in (12192 mm) |
Dimensions
| Gradeability | 40 % |
| Overall Width | 21.9 ft in (6675.2 mm) |
| Center To Center – Idler To Sprocket | 4.7 ft in (1432.6 mm) |
| Shoe Width | 48 ft in (14630.4 mm) |
| Overall Length Of Crawler | 25.2 ft in (7653.6 mm) |
| Ground Clearance | 1.7 ft in (518.2 mm) |
| Counterweight Clearance | 4.5 ft in (1371.6 mm) |
