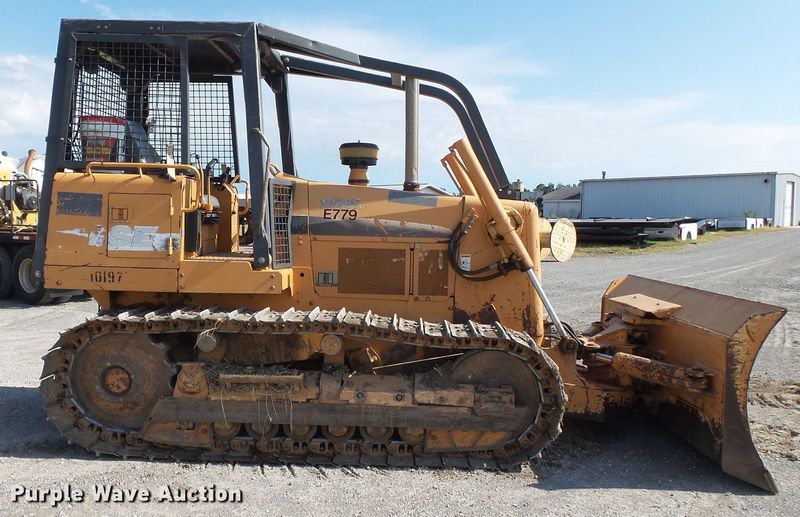

Case 1150H LT
Browse All Case or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.11 ft in (4910 mm) |
| Width Over Tracks | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Length Of Track On Ground | 8.08 ft in (2460 mm) |
| Ground Clearance | 1.08 ft in (328 mm) |
Undercarriage
| Track Gauge | 5.16 ft in (1570 mm) |
| Standard Shoe Size | 22 in (558.8 mm) |
| Track Pitch | 6.7 in (170.18 mm) |
| Number Of Shoes Per Side | 43 |
| Ground Pressure | 6 psi (0.29 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Contact Area | 4255 in2 (2.75 m2) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | 6T-590 |
| Gross Power | 124 hp (92.5 kw) |
| Net Power | 119 hp (88.8 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 372 lb ft (504.4 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 25300 lb (11475.9 kg) |
| Fuel Capacity | 56 gal (212 L) |
| Cooling System Fluid Capacity | 7.3 gal (27.4 L) |
| Engine Oil Capacity | 4 gal (15.1 L) |
| Hydraulic Fluid Capacity | 17.1 gal (64.4 L) |
| Final Drives Fluid Capacity | 2.1 gal (7.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Case constant-mesh powershift modulated |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 5.8 mph (9.3 km/h) |
| Max Speed - Reverse | 6.9 mph (11.1 km/h) |
Hydraulic System
| Relief Valve Pressure | 2000 psi (13789.6 kPa) |
| Pump Flow Capacity | 34.9 gal/min (132.2 L/min) |
Standard Blade
| Width | 9.2 ft in (2790 mm) |
| Height | 44.1 in (1118 mm) |
| Capacity | 3.5 yd3 (2.6 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
