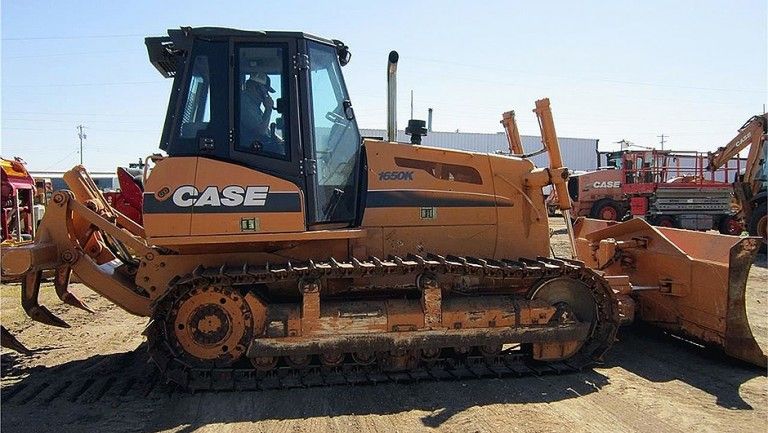

Case 1650K XLT
Browse All Case or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.45 ft in (5318 mm) |
| Width Over Tracks | 8.04 ft in (2450 mm) |
| Height To Top Of Cab | 10.09 ft in (3073 mm) |
| Length Of Track On Ground | 9.81 ft in (2990 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Standard Shoe Size | 22 in (559 mm) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 48 |
| Ground Pressure | 6.8 psi (47.2 kPa) |
| Track Pitch | 6.93 in (176 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTAA-5.9 |
| Gross Power | 150 hp (110 kw) |
| Net Power | 140 hp (104 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 479 lb ft (649.5 Nm) |
| Displacement | 360 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 33780 lb (15322.4 kg) |
| Fuel Capacity | 71.3 gal (269.9 L) |
| Cooling System Fluid Capacity | 9.2 gal (34.6 L) |
| Engine Oil Capacity | 4 gal (15.1 L) |
| Hydraulic Fluid Capacity | 16.4 gal (62 L) |
| Final Drives Fluid Capacity | 4.8 gal (17.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (11 km/h) |
| Max Speed - Reverse | 8.1 mph (13 km/h) |
Hydraulic System
| Pump Type | Piston |
| Pump Flow Capacity | 31.7 gal/min (120 L/min) |
Standard Blade
| Width | 10.5 ft in (3200 mm) |
| Height | 46.5 in (1180 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Cutting Depth | 18.9 in (480 mm) |
