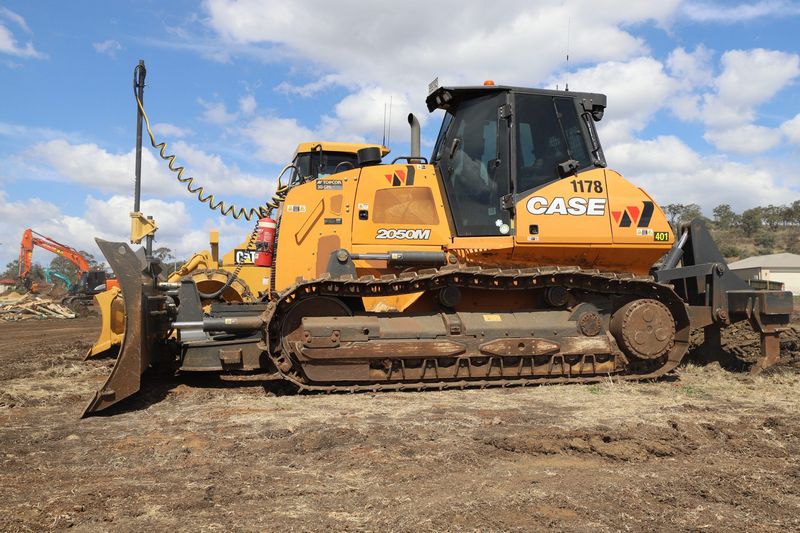

Case 2050M
Browse All Case or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 8.26 ft in (2515 mm) |
| Height To Top Of Cab | 122.17 in (3103 mm) |
| Length Of Track On Ground | 0.02 ft in (3.25 mm) |
| Ground Clearance | 1.34 ft in (408.2 mm) |
| Blade Depth Below Ground | 21.53 in (546.8 mm) |
| Height To Top Of Rops | 124.02 in (3150 mm) |
| Blade Lift Above Ground | 48.73 in (1237.7 mm) |
| Cast Reach | 17.28 in (438.9 mm) |
| Height To Top Of Exhaust | 11.31 in (287.07 mm) |
Undercarriage
| Track Gauge | 0.01 ft in (1.94 mm) |
| Number Of Bottom Rollers Per Side | 8 |
| Number Of Shoes Per Side | 45 |
| Number Of Upper Rollers | 2 |
| Ground Pressure | 7.33 psi (50.54 kPa) |
Electrical System
| Alternator | 120 amp |
| Batteries | 2 |
| Battery | 12-volt low-maintenance |
Engine
| Air Intake | Cross-Flow |
| Fuel | 2 Diesel |
| Fuel Injection | Common rail |
| Emission Tier Level | Interim Tier 4 |
| Fan | 27.6 in,(700mm)Diameter |
| Pump Operating Angles -Side-To-Side | 35 degrees |
| Pump Operating Angles - Fore And Aft | 45 degrees |
| Transmission Type | Hydrostatic |
| Fuel Tank | 107 gal (405 L) |
| Number Of Cylinders | 6 |
| Engine Model | FPT F4HFE613J |
| Gross Power | 232 hp (173.1 kw) |
| Cooling System | Liquid |
| Net Power | 214 hp (159.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Diesel Exhaust Fluid (Def) Tank Capacity | 13.8 gal (52 L) |
Drive Train
| Max Drawbar Pull | 80931.3 lb (360 kN) |
| Parking Brakes | Heavy-duty, spring-applied, |
| Final Drive | 2 helical gear |
Capacities
| Engine Oil With Filter | 4.4 gal (16.4 L) |
Operational
| Long Track | 45413.1 lb (20599 kg) |
| Wide Track | 46890.2 lb (21269 kg) |
| Low Ground Pressure | 48772.9 lb (22123 kg) |
| Winch | 5511.6 lb (2500 kg) |
| Sweeps | 138.9 lb (63 kg) |
| ​Draw Bar Pull | 66 kg |
| Operating Weight | 48772.9 lb (22123 kg) |
Performance
| Pump Flow | 34.9 gal/min (132 L/min) |
Transmission
| Max Speed - Forward | 5.8 mph (9.4 km/h) |
| Max Speed - Reverse | 5.8 mph (9.4 km/h) |
Hydraulic
| Lift Cylinder(S) | 2 |
| Lift Cylinder-Bore Diameter | 4.5 in (114.3 mm) |
| Lift Cylinder - Rod Diameter | 2.5 in (63.5 mm) |
| Lift Cylinder - Stroke | 19.3 in (488 mm) |
Blade
| Blade Width | 13.4 ft in (4064 mm) |
| Blade Capacity | 7.1 yd3 (5.4 m3) |
| Blade Height | 55.9 in (1418 mm) |
| Blade Type | PAT |
Hydraulic System
| Pump Type | Variable Displacement Piston |
