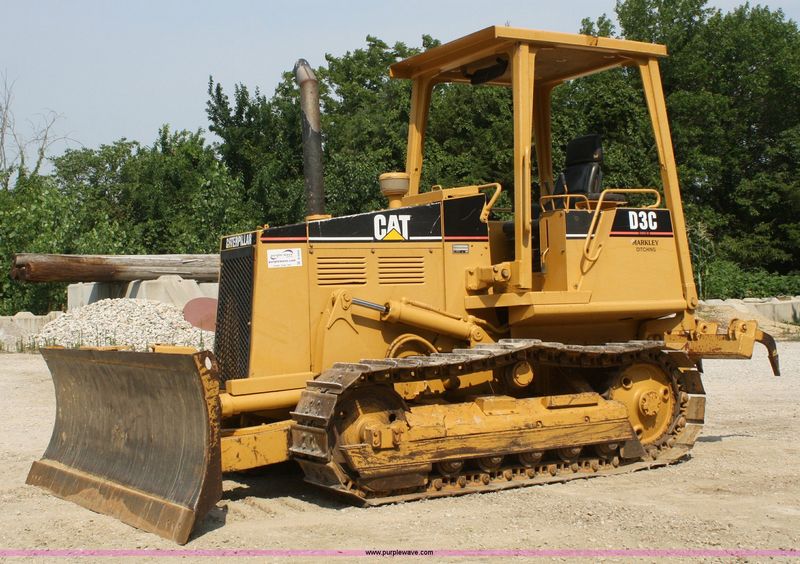

Caterpillar D3C Series III
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.39 ft in (3774 mm) |
| Width Over Tracks | 6 ft in (1828 mm) |
| Height To Top Of Cab | 8.75 ft in (2664 mm) |
| Length Of Track On Ground | 6.25 ft in (1902 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Length W/O Blade | 9.63 ft in (2933 mm) |
Undercarriage
| Track Gauge | 4.67 ft in (1422 mm) |
| Standard Shoe Size | 15.99 in (406 mm) |
| Number Of Shoes Per Side | 37 |
| Ground Pressure | 6.45 psi (44.48 kPa) |
| Number Of Track Rollers Per Side | 5 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3046 |
| Gross Power | 78 hp (58.2 kw) |
| Net Power | 71 hp (53 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 305 cu in (5 L) |
Operational
| Operating Weight | 15518 lb (7038.9 kg) |
| Fuel Capacity | 32.3 gal (122 L) |
| Cooling System Fluid Capacity | 2.4 gal (9 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Hydraulic Fluid Capacity | 15.1 gal (56.8 L) |
| Powertrain Fluid Capacity | 7.5 gal (28.2 L) |
| Final Drives Fluid Capacity | 2.6 gal (9.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.7 mph (10.8 km/h) |
| Max Speed - Reverse | 7.1 mph (11.5 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 14.3 gal/min (54.1 L/min) |
Standard Blade
| Width | 8.2 ft in (2474 mm) |
| Height | 33.2 in (841 mm) |
| Capacity | 1.7 yd3 (1.3 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 15.7 in (398 mm) |
