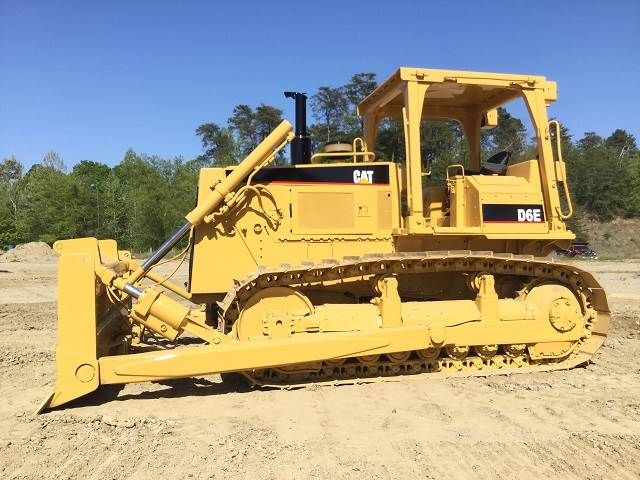

Caterpillar D6E
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.75 ft in (4800 mm) |
| Width Over Tracks | 8.08 ft in (2460 mm) |
| Height To Top Of Cab | 10.04 ft in (3060 mm) |
| Length Of Track On Ground | 8.76 ft in (2670 mm) |
| Ground Clearance | 1.02 ft in (310 mm) |
| Length W/O Blade | 12.24 ft in (3730 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 20 in (508 mm) |
| Ground Contact Area | 4216.01 in2 (2.72 m2) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.84 psi (54 kPa) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 155 hp (115.6 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 32981.2 lb (14960 kg) |
| Fuel Capacity | 78 gal (295 L) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.8 km/h) |
| Max Speed - Reverse | 8.1 mph (12.9 km/h) |
Standard Blade
| Width | 10.5 ft in (3200 mm) |
| Height | 44.5 in (1128 mm) |
| Capacity | 4.3 yd3 (3.3 m3) |
| Blade Angle (Both Directions) | 12 degrees |
| Cutting Depth | 18.6 in (472 mm) |
