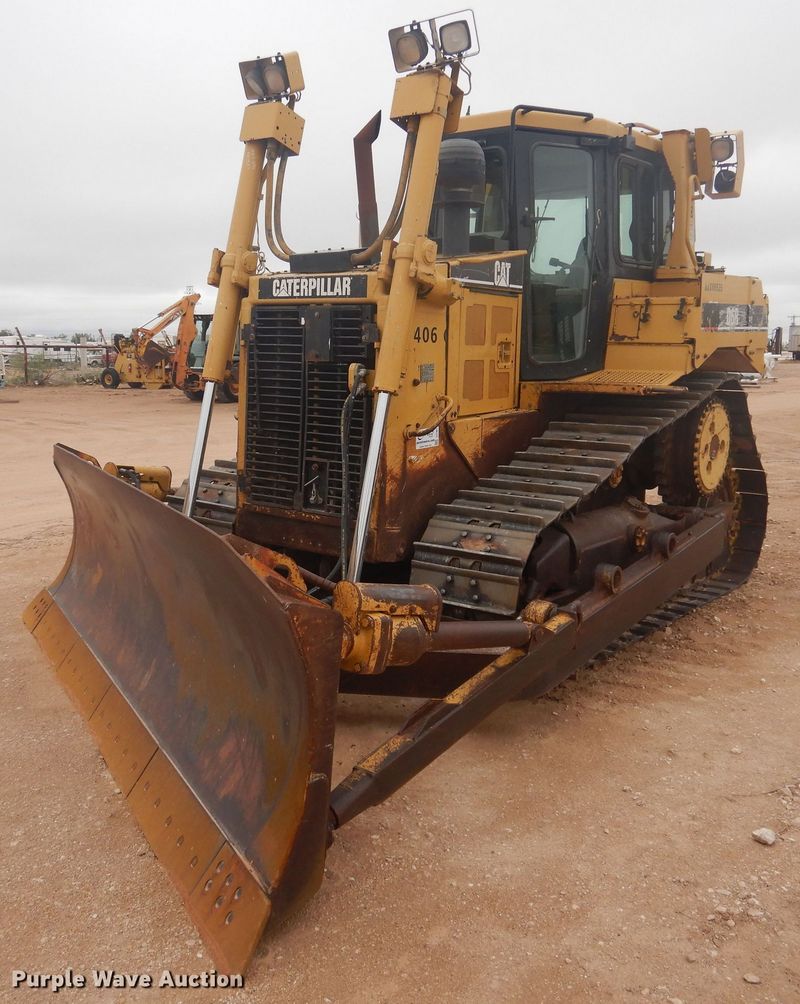

Caterpillar D6R XL Series II
Browse All Caterpillar or Crawler Tractor Models
Contents:
Blades
| Vpat-Blade Width | 13.4 ft in (4.09 m) |
| Blade Type | PAT |
Dimensions
| Length W/ Blade | 16.8 ft in (5120 mm) |
| Width Over Tracks | 8.01 ft in (2440 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 9.26 ft in (2820 mm) |
| Ground Clearance | 1.26 ft in (383 mm) |
| Length W/O Blade | 13.39 ft in (4080 mm) |
| Overall Length - With Blade | 212.4 in (5394.96 mm) |
| Height | 7.9 ft in (2407.92 mm) |
| Height - Rops/Canopy | 10.3 ft in (3.14 m) |
| Overall Length - Basic Tractor - With Drawbar | 13.6 ft in (4.15 m) |
Undercarriage
| Track Gauge | 7.1 ft in (2164.08 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Ground Clearance | 0.15 ft in (44.45 mm) |
| Number Of Track Rollers Per Side | 7 |
| Track On Ground | 10.1 in (256.55 mm) |
| Track Rollers/Side | 7 |
| Ground Pressure | 8.6 psi (59.3 kPa) |
| Ground Contact Area | 4888 in2 (3.16 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C9 |
| Gross Power | 185 hp (138 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 537 cu in (8.8 L) |
| Engine Model | 3306T |
| Flywheel Power | 175 hp (130.5 kw) |
| Flywheel Power - Power Shift | 175 hp (130.5 kw) |
Operational
| Operating Weight | 41914 lb (19011.9 kg) |
| Fuel Capacity | 101 gal (382.4 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.7 mph (12.4 km/h) |
| Max Speed - Reverse | 10 mph (16.1 km/h) |
Weights
| Operating Weight | 48550 lb (22022 kg) |
| Operating Weight - Power Shift | 48550 lb (22022 kg) |
Standard Blade
| Width | 11.1 ft in (3360 mm) |
| Height | 49.5 in (1257 mm) |
| Capacity | 3.9 yd3 (3 m3) |
| Cutting Depth | 18.7 in (473 mm) |
