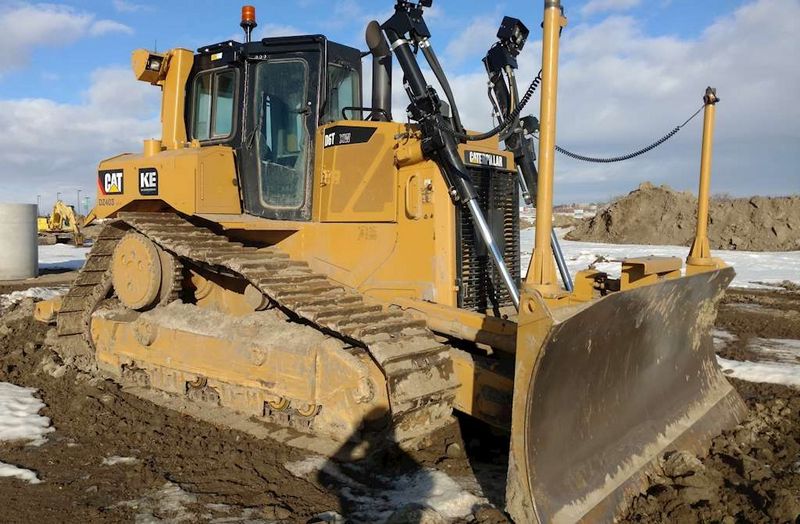

Caterpillar D6T XW VPAT
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 9.83 ft in (2997 mm) |
| Height To Top Of Cab | 10.5 ft in (3195 mm) |
| Length Of Track On Ground | 9.42 ft in (2871 mm) |
| Ground Clearance | 1.25 ft in (383 mm) |
| Length W/O Blade | 12.67 ft in (3860 mm) |
Undercarriage
| Standard Shoe Size | 28 in (710 mm) |
| Ground Pressure | 7.45 psi (51.37 kPa) |
| Track Pitch | 8 in (203 mm) |
| Ground Contact Area | 6328 in2 (4.08 m2) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 41 |
Engine
| Engine Make | 2236 |
| Engine Model | C9 ACERT |
| Gross Power | 228 hp (170 kw) |
| Net Power | 200 hp (149 kw) |
| Displacement | 537 cu in (8.8 L) |
Operational
| Operating Weight | 47276 lb (21444 kg) |
| Fuel Capacity | 112 gal (424 L) |
| Cooling System Fluid Capacity | 18.5 gal (76.8 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Hydraulic Fluid Capacity | 13.6 gal (51.5 L) |
| Powertrain Fluid Capacity | 38.5 gal (145.7 L) |
| Final Drives Fluid Capacity | 3.6 gal (13.6 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.2 mph (11.5 km/h) |
| Max Speed - Reverse | 9.1 mph (14.6 km/h) |
Hydraulic System
| Relief Valve Pressure | 3126 psi (21550 kPa) |
| Pump Flow Capacity | 49.9 gal/min (189 L/min) |
Standard Blade
| Width | 13.7 ft in (4160 mm) |
| Height | 51 in (1295 mm) |
| Capacity | 6.7 yd3 (5.1 m3) |
| Cutting Depth | 29 in (737 mm) |
