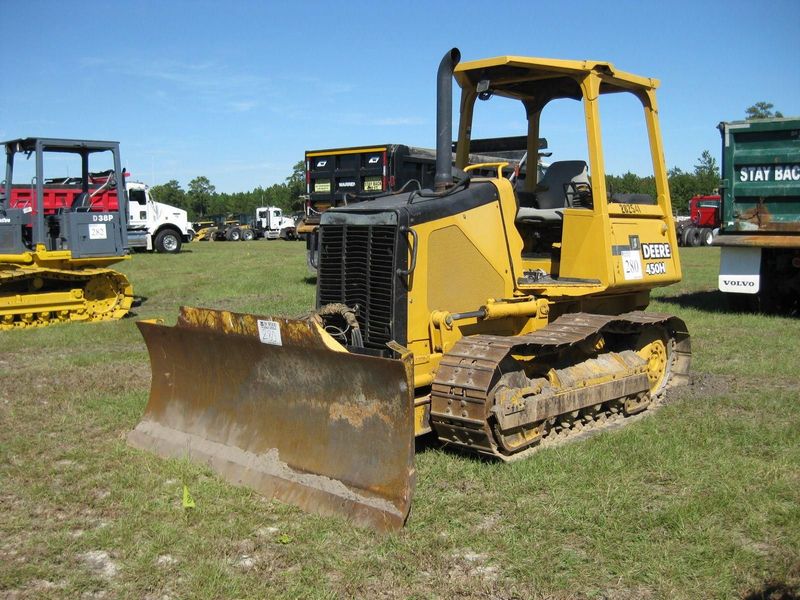

John Deere 450H
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 1.34 ft in (406 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 6.42 ft in (1956 mm) |
| Ground Clearance | 1.14 ft in (346 mm) |
| Length W/O Blade | 12.92 ft in (3937 mm) |
Undercarriage
| Standard Shoe Size | 16 in (406 mm) |
| Ground Pressure | 6.1 psi (42.1 kPa) |
| Track Pitch | 6.29 in (159.81 mm) |
| Ground Contact Area | 2464 in2 (15897 m2) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Shoes Per Side | 37 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045D |
| Gross Power | 73 hp (54.5 kw) |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 223 lb ft (302.4 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Naturally aspirated |
Operational
| Operating Weight | 15000 lb (6818 kg) |
| Fuel Capacity | 36 gal (136 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic Fluid Capacity | 8.5 gal (32.2 L) |
| Powertrain Fluid Capacity | 11.3 gal (42.7 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Dual-path, electronic-controlled, hydrostatic drive |
| Max Speed - Forward | 5 mph (8 km/h) |
| Max Speed - Reverse | 5 mph (8 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi (20685 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
Standard Blade
| Width | 7.5 ft in (2286 mm) |
| Height | 32.5 in (826 mm) |
| Capacity | 1.9 yd3 (1.4 m3) |
| Blade Angle (Both Directions) | 25.4 degrees |
| Cutting Depth | 20.8 in (528 mm) |
